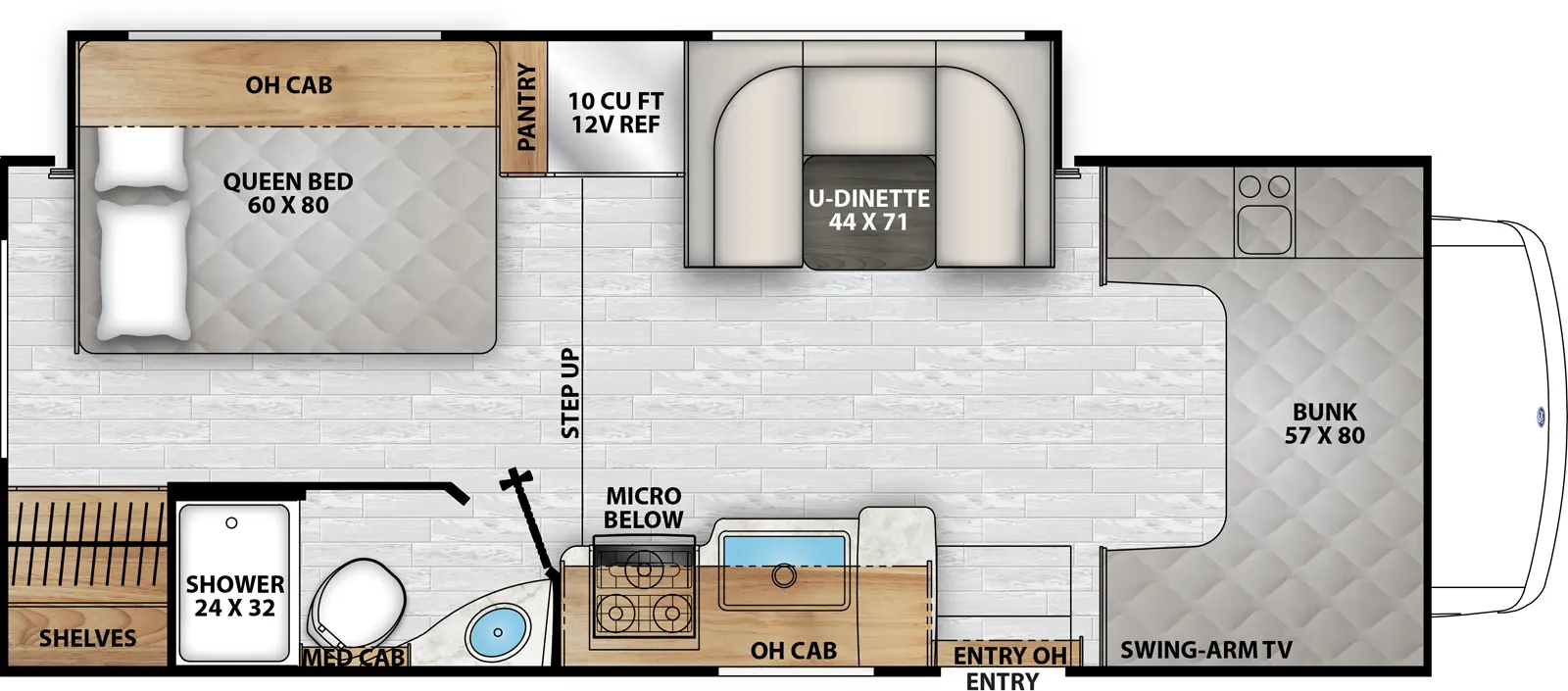

23FS Floorplan
- Wheelbase
- 177"
- GVWR
- 12,300 lb.
- GCWR
- 20,000 lb.
- GAWR Front
- 4,300 lb.
- GAWR Rear
- 8,600 lb.
- Fuel Capacity
- 57 gal.
- LP Tank Capacity
- 68 lb.
- Exterior Length
- 26' 6"
- Exterior Height
- 10' 10"
- Exterior Width
- 100"
- Fresh Water
- 43 gal.
- Gray Water
- 31 gal.
- Black Water
- 31 gal.
- Awning Size
- 17'
- Wheelbase
- 177"
- GVWR
- 12,300 lb.
- GCWR
- 20,000 lb.
- GAWR Front
- 4,300 lb.
- GAWR Rear
- 8,600 lb.
- Fuel Capacity
- 57 gal.
- LP Tank Capacity
- 68 lb.
- Exterior Length
- 26' 6"
- Exterior Height
- 10' 10"
- Exterior Width
- 100"
- Fresh Water
- 43 gal.
- Gray Water
- 31 gal.
- Black Water
- 31 gal.
- Awning Size
- 17'
- Wheelbase
- 177"
- GVWR
- 12,300 lb.
- GCWR
- 20,000 lb.
- GAWR Front
- 4,300 lb.
- GAWR Rear
- 8,600 lb.
- Fuel Capacity
- 57 gal.
- LP Tank Capacity
- 68 lb.
- Exterior Length
- 26' 6"
- Exterior Height
- 10' 10"
- Exterior Width
- 100"
- Fresh Water
- 43 gal.
- Gray Water
- 31 gal.
- Black Water
- 31 gal.
- Awning Size
- 17'
Specifications Definitions
GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.
GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.
GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.
UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.
CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.
Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.
The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
Note: Specifications are subject to change without notice.
-
Top Features (2026 Model Year) (Non-SS Models)
- Large 57 x 80" Cab-Over Sleeping Area with Cup Holders & Storage (800 lb. Capacity)
- 15,000 BTU A/C with Heat Pump (Optional Rear A/C on 26DS, 26MB, 29KB & 31MB)
- CRV Super Springs Ride – Self-adjusting Rear Helper Spring (N/A 22XG & 27QB)
- On-Demand Tankless Water Heater & AquaView Showermiser
- Max-Length Power Patio Awning with LED Light Strip (15' through 21' Lengths)
- 10 cu. ft. 12V Refrigerator
- Solar Power Prep on Roof – (Optional 200W Panel w/ 30-amp Controller)
- AlphaPly TPO Seamless 1-Piece Roof Material (Lifetime Warranty)
- Residential 80" Length Queen & King Size Beds (N/A on 22XG & 26MB Murphy-Beds)
- Starlink Prep
- Azdel Composite Sidewall & Cabover Floor Construction
-
Freelander Standard Features & Options (Excluding SS Models)
- 5,000 lb. Towing Hitch (Ford E-350)
- Exterior LED Taillights and Marker Lights
- Bed Area USB Port
- Roto-Cast Rear Warehouse Storage Compartment
- <strong>SLEEPING</strong>
- Vanity Mirror
- Molded Fiberglass Front Cap
- Upgraded Sideview Mirrors
- Bedroom TV Prep
- 200W Roof Mounted Solar Panel with 30 Amp Controller and Dual AGM Group 24 Battery
- Hydraulic Leveling Jacks (N/A 22XG)
- Telescopic Bunk Ladder
- Privacy Drape (Lower Cab)
- Premium Shower Head and Faucet
- 10 cu. ft. 12V Refrigerator
- Back-Up Camera
- Power Patio Awning with LED Light Strip
- 15,000 BTU Non-Ducted Roof A/C with Heat Pump (22XG, 23FS)
- Exterior Water Panel w/ Black Tank Flush
- Upgraded Running Boards
- CarPlay/Android Auto Dash Radio (N/A Chevy Chassis)
- Stainless Steel Wheel Liners
- Tinted Radius Slider Windows - Safety Glass
- LED Ceiling Lights
- NPS 4500 Generator (N/A 26MB)
- Microwave Oven
- Equalizer Stabilizer Jacks (N/A 22XG)
- Cab Over and Bedroom Power Vent Fan with Maxxair Cover
- Child Safety Net in Cabover
- <strong>CRV SUPERSPRINGS RIDE (MANDATORY - N/A 22XG, 27QB)</strong>
- Roto-cast Rear Warehouse Storage Compartment
- Starlink Prep
- Propane Furnace
- Auto Gen Start
- SumoSpring Front Shock Absorbers
- SuperSpring Rear Self-Adjusting Helper Spring
- <strong>GALLEY</strong>
- High-rise Kitchen Faucet
- <strong>ELECTRICAL / HEATING</strong>
- Auxiliary House Battery
- Full Body Paint (Optional): Sage or Kingston
- Slide Out Awning Topper(s)
- Systems Command Center
- Seamless One-Piece Roof Material
- Slide Out Awning Topperss
- 15,000 BTU A/C with Heat Pump
- Power, Lighted Range Hood
- GFI Circuit
- Pleated Night Shades and Valences
- Storage Above Entrance Door with HDMI and Charge Station
- <strong>INTERIOR EQUIPMENT</strong>
- Smoke Detector
- Dynamic Balanced Driveshaft System
- Exterior LP Quick Connect
- Single Child Tether at Forward Facing Dinette
- Valet Rod in Closest
- Cab Over Bunk Ladder
- Heated Mirrors
- Top Mount Stainless Steel Farmers Kitchen Sink (N/A 26DS)
- Low Point Drain and Winterize Valve at Fresh Tank
- <strong>INTERIOR APPOINTMENTS</strong>
- Tankless Water Heater
- Heavy Duty Front and Rear Stabilizer Bars
- 5G/WiFi Booster
- Recessed 3-Burner Cooktop w/Cover
- Trash Can in Kitchen Base
- Queen Bed - 60" X 80" (23FS, 27QB, 31MB)
- Auto Generator Changeover
- Solar Prep at Roof and Entry Door
- Power Patio Awning with LED Light Strip
- Driver/Passenger Swivel Seats, Windshield Cover & Cockpit Folding Table (N/A 27QB & Chevy Chassis)
- <strong>BATH AND WATER</strong>
- Skylight Over Shower
- Premium Vinyl Flooring
- Winegard Air 360+ TV/FM/AM Antenna
- Rear-View Color Backup Camera Monitor
- White Fiberglass Walls with Graphics Package
- <strong>ESCALADE PACKAGE (OPTIONAL - N/A CHEVY CHASSIS)</strong>
- Porcelain Foot Flush Toilet
- Demand Water Pump
- Electric Stabilizer Jacks (Optional) (N/A 22XG)
- Pop Up Kitchen Recept with USB and Wireless Charging
- Vacu-bond Laminated Walls, Roof, and Floor
- Soft-Close Roller Bearing Drawer Guides
- 1 Year of RV Roadside & Technical Assistance (Specialized Dispatch Services)
- Rearview Mirror Backup Monitor
- 40" Living Room 12V Smart TV
- Set Up Lights w/ Switch
- 5,000 lb. Towing Hitch (Ford E-350)
- <strong>INTERIOR & EXTERIOR DÉCOR</strong>
- Leatherette Cockpit Seat Covers
- USB Charging Ports
- Cable TV, Portable Satellite Dish Exterior Hookup
- Hydraulic Leveling Jacks (Optional) (N/A 22XG)
- <strong>OPTIONAL EQUIPMENT</strong>
- Carbon Monoxide Detector
- Cruise Control
- Power Windows and Locks
- Exterior: Freelander Graphics Package
- LP Quick Connect
- Exterior Shower
- Chassis Electronic Stability Control
- Kitchen Backsplash
- Power Bath Vent
- Walnut Dawn Wood Grain
- U-Dinette (23FS, 26MB, 31MB)
- <strong>CHASSIS</strong>
- 55 Gallon Fuel Tank (Ford)
- Aluminum Running Boards
- LP Leak Alarm
- Touch Screen Radio w/Dash Speakers and CarPlay (Ford only)
- <strong>EXTERIOR EQUIPMENT</strong>
- 1 Year of RV Roadside & Technical Assistance (Specialized Dispatch Services)
- Interior: Arcadia
- HDMI Port for Living Room TV
- Large Cab Over Bunk - 57" X 95" with Storage, Cup Holders and USB ports
- Steel Entry Stepwell with Auxiliary House Battery Storage
- Rear Roof Ladder Prep (by Lippert Components)
- Convection Oven
- Side View Cameras
- Roll-Away Shower Door
- Driver and Passenger Air Bags
- Molded Fiberglass Front Cap w/ LED Lighting
- 10 cu. ft. 12V Glass Door Refrigerator
- Dual Batteries
- Fire Extinguisher
- Full Aluminum Framed Walls, Roof, Floor Structures
- Wall Mounted Thermostat
- 40" 12V Coach Smart TV
- Dash Air Conditioning
- Exterior Shower
- Upgraded Exterior Safety Grab Handle
- Interior Safety Grab Handle at Entrance Door
- Rear Steel Bumper
- Tankless Water Heater
- Azdel Composite Sidewall and Cabover Construction
- <strong>EXPLORER PACKAGE (MANDATORY)</strong>
- Solar Panel Connection Ports at Sidewall and Roof
- Bed Area with 110V & 12V outlets
- Tilt Steering Wheel
- Heated Holding Tanks
- 30 Amp Detachable Power Cord (N/A 26MB)
- 55 Amp Electronic Converter
- Premium One-Piece Thermofoil Countertops
- Black Tank Flush
- Kitchen Faucet with Spray Head
- Single Bowl Lavatory Sink with Single Lever Faucet
