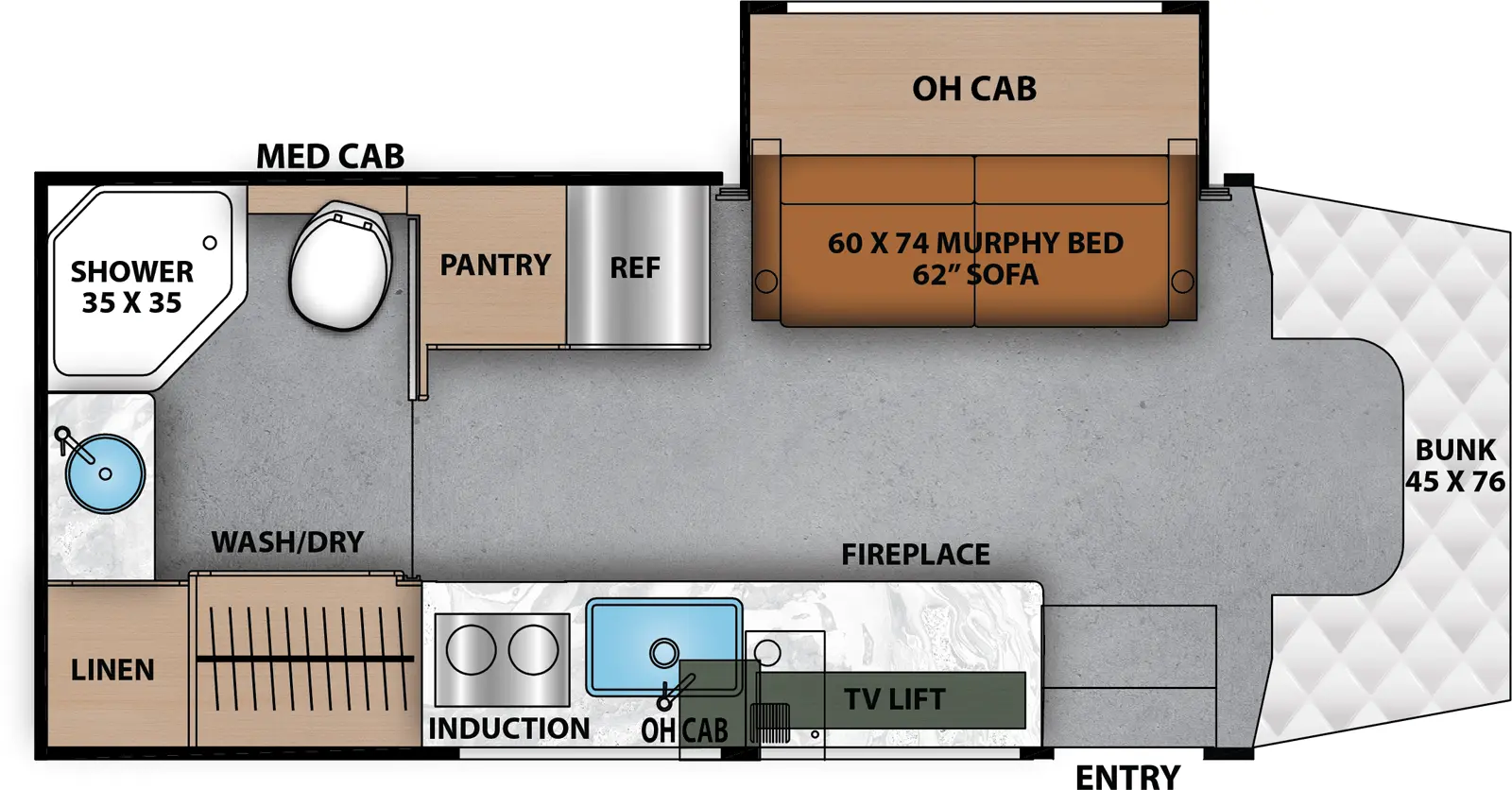

24MB Floorplan

24MB Elite
Wheelbase
170"
GVWR
11,030 lb.
GCWR
15,250 lb.
GAWR Front
4,081 lb.
GAWR Rear
7,721 lb.
Fuel Capacity
26 gal.
LP Tank Capacity
80 lb.
Exterior Length
25' 0"
Exterior Height
11' 7"
Exterior Width
92"
Fresh Water
32 gal.
Gray Water
32 gal.
Black Water
32 gal.
Awning Size
14'
24MB Select
Wheelbase
170"
GVWR
11,030 lb.
GCWR
15,250 lb.
GAWR Front
4,081 lb.
GAWR Rear
7,721 lb.
Fuel Capacity
26 gal.
LP Tank Capacity
80 lb.
Exterior Length
25' 0"
Exterior Height
11' 7"
Exterior Width
92"
Fresh Water
32 gal.
Gray Water
32 gal.
Black Water
32 gal.
Awning Size
14'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Mercedes-Benz Sprinter Chasis

    • Lane Assist
    • MBUX Multimedia System w/ Navigation
    • Rotating/Reclining Pilot & Co-Pilot Seats
    • 4-Cylinder Diesel High Output Engine
    • Rear Wheel Drive
    • Horsepower: 208
    • 9G-TRONIC Automatic Transmission
    • Attention Assist
    • 5,000lb Towing Hitch w/ 7 Way Plug
    • Rated Torque: 322 lb-ft
    • Intelligent Voice Control System
    • Adaptive Cruise Control
    • Apple Carplay & Android Auto

  • Standard Interior Features & Options

    • Convection Microwave
    • Interior Coach TV
    • Two Tone Interior Cabinetry: Speyside or Highland
    • 13.5k BTU A/C with Heat Pump
    • Interior Pull Down Window Shades
    • Enlarged Front Cap and Window with Molded Interior Plastic
    • Cabover Bunk
    • Thermofoil Countertops
    • Enlarged Molded Plastic Cabover Area
    • Induction Cooktop
    • Tankless Water Heater
    • Even Cool A/C Ducting System
    • 10cu/ft 12V Double Door Refrigerator with Freezer Drawer (N/A 25TB)

  • Standard Exterior Features & Options

    • Vinyl Graphics
    • Curved Wing Walls
    • Starlink Prep
    • Heated Holding Tanks
    • Side & Rear-View Monitor & Cameras
    • Frameless Windows
    • Solar Prep
    • Lamilux™ 4000 Color Infused Fiberglass
    • Molded Fiberglass Front Cap with Front Window
    • Azdel “SuperLite” Substrate with Aluminum Framing
    • Exterior Storage
    • Slide Out Toppers
    • 3.6kw LP Generator
    • Two Single Color Full Body Paints (Optional): Cacti Green or Harbor Blue
    • 80 lb. Propane Capacity
    • CrossFlex Roof Membrane
    • 2" Vacuum Bond Laminated Sidewalls

  • Prism Elite Package Interior Features & Options

    • 15K BTU Low Profile A/C with Heat Pump
    • Auto Gen Start
    • Bed Maxxair Power Vent Fan w/ Cover
    • Solid Surface Countertops w/ Lit Edge Banding
    • Porcelain Toilet
    • Curio Glass in Overhead Kitchen Cabinets
    • Dual Aux Batteries
    • Soft Touch Ceiling
    • Upgraded Kitchen Sink & Faucet
    • Firefly Multiplex System
    • Raised Vessel Lavatory Sink
    • LED Batton Strip Lights
    • Coach Deluxe Maxxair Power Vent Fan w/ Cover
    • Washer/Dryer Combo (24MB Only)
    • Truma Aqua Go On Demand Water Heater

  • Prism Elite Standard Exterior Features & Options

    • Exterior Entertainment Center
    • Rear Fiberglass Cap
    • Full Body Paint: Arctic, Smokey Mountain, Everglade, Cacti Green, or Harbor Blue
    • Integrated Fiberglass Running Boards
    • Upgraded MORryde Cargo Doors
    • Armless Awning

  • Optional Features

    • Dual AUX Battery (Included w/ Elite Package)
    • Bed MaxxAir Power Vent Fan and Cover (Included w/ Elite Package)
    • Power Dual Recliners and Table (24CB, 24FS)
    • Washer/Dryer Combo (24MB Only) (Included w/ Elite Package)
    • Hydraulic Leveling Jacks
    • Cockpit Folding Table
    • Coach Deluxe MaxxAir Power Vent Fan Cover (Included w/ Elite Package)
    • 200W Roof Solar
    • Electric Stabilizer Jacks
    • Exterior Entertainment Center (Included w/ Elite Package)
    • Three Single Color Full Body Paints w/ Black Aluminum Wheels (Optional): Cacti Green, Harbor Blue, or Battheship Grey
