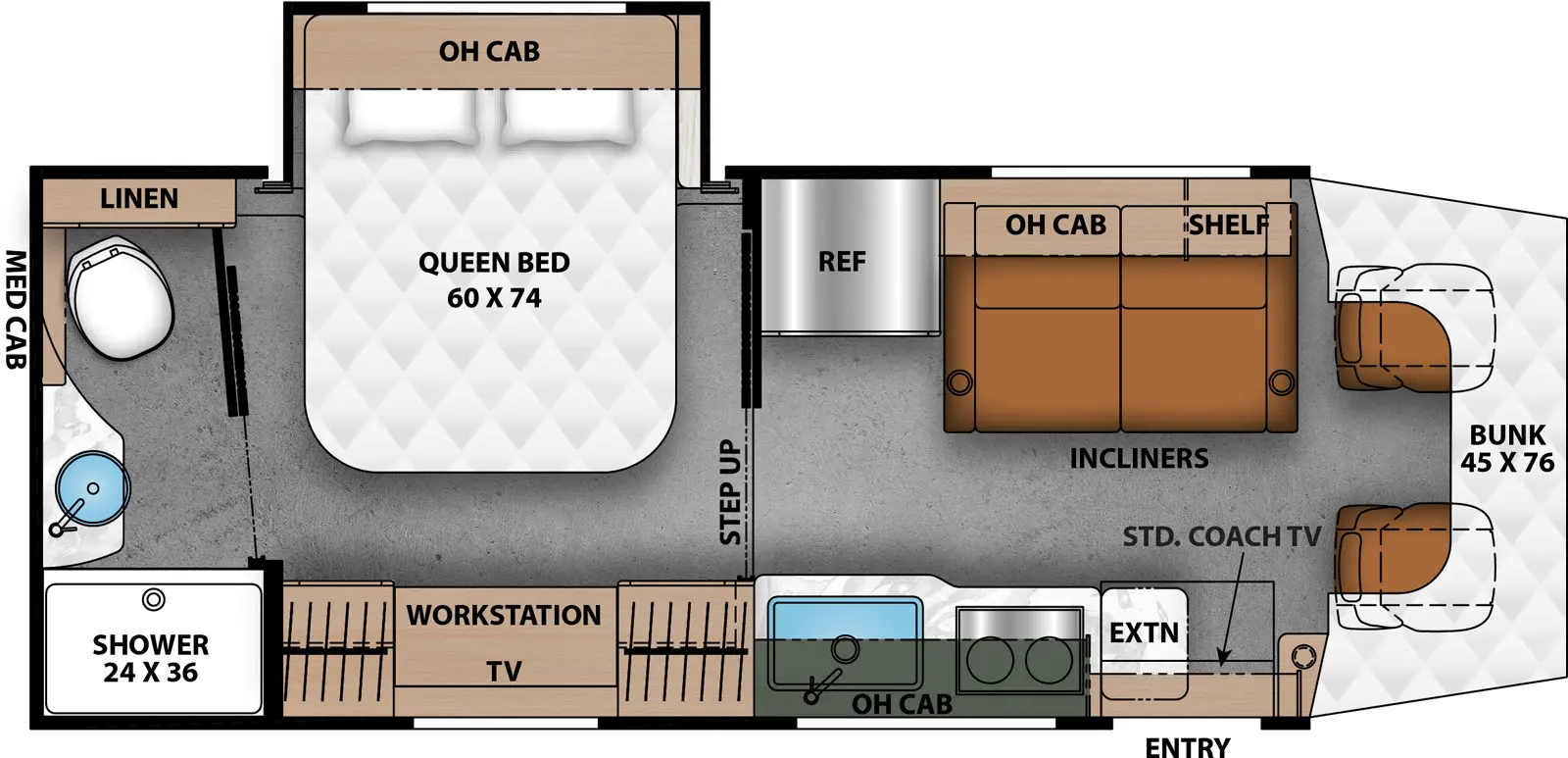

26RB Floorplan

26RB Elite
Wheelbase
170"
GVWR
11,030 lb.
GCWR
15,250 lb.
GAWR Front
4,081 lb.
GAWR Rear
7,721 lb.
Fuel Capacity
26 gal.
LP Tank Capacity
80 lb.
Exterior Length
26' 0"
Exterior Height
11' 7"
Exterior Width
92"
Fresh Water
29 gal.
Gray Water
32 gal.
Black Water
32 gal.
Awning Size
14'
26RB Select
Wheelbase
170"
GVWR
11,030 lb.
GCWR
15,250 lb.
GAWR Front
4,081 lb.
GAWR Rear
7,721 lb.
Fuel Capacity
26 gal.
LP Tank Capacity
80 lb.
Exterior Length
26' 0"
Exterior Height
11' 7"
Exterior Width
92"
Fresh Water
29 gal.
Gray Water
32 gal.
Black Water
32 gal.
Awning Size
14'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Prism Mercedes-Benz® Sprinter Chassis

    • MBUX Multimedia System w/ Navigation
    • Horsepower: 208
    • 5,000lb Towing Hitch w/ 7 Way Plug
    • Apple Carplay & Android Auto
    • Adaptive Cruise Control
    • Rotating/Reclining Pilot & Co-Pilot Seats
    • Lane Assist
    • Rear Wheel Drive
    • 9G-TRONIC Automatic Transmission
    • Attention Assist
    • Rated Torque: 322 lb-ft
    • 4-Cylinder Diesel High Output Engine
    • Intelligent Voice Control System

  • Prism Standard Interior Features & Options

    • Enlarged Front Cap and Window with Molded Interior Plastic
    • Tankless Water Heater
    • Thermofoil Countertops
    • 10 cu. ft. 12V Double Door Refrigerator with Freezer Drawer (N/A 25TB)
    • Interior Coach TV
    • Enlarged Molded Plastic Cabover Area
    • Cabover Bunk
    • 13,500 BTU A/C with Heat Pump
    • Two Tone Interior Cabinetry: Indigo Bay (Indigo Blue / Sand Dune) or Highland (Duna Green / Mary Maple)
    • Induction Cooktop
    • Interior Pull Down Window Shades
    • Even Cool A/C Ducting System
    • Convection Microwave

  • Prism Standard Exterior Features & Options

    • Starlink Prep
    • Heated Holding Tanks
    • Exterior Storage
    • 3.6kw LP Generator
    • Azdel “SuperLite” Substrate with Aluminum Framing
    • Molded Fiberglass Front Cap with Front Window
    • Slide Out Toppers
    • 80 lb. Propane Capacity
    • Frameless Windows
    • Lamilux™ 4000 Color Infused Fiberglass
    • 2" Vacuum Bond Laminated Sidewalls
    • Side & Rear-View Monitor & Cameras
    • Two Single Color Full Body Paints (Optional): Cacti Green or Harbor Blue
    • CrossFlex Roof Membrane
    • Curved Wing Walls
    • Solar Prep
    • Vinyl Graphics

  • Prism Elite Standard Interior Features & Options

    • Upgraded Kitchen Sink & Faucet
    • Coach Deluxe Maxxair Power Vent Fan w/ Cover
    • LED Batton Strip Lights
    • Solid Surface Countertops w/ Lit Edge Banding
    • Raised Vessel Lavatory Sink
    • Firefly Multiplex System
    • Truma Aqua Go On Demand Water Heater
    • Auto Gen Start
    • Dual Aux Batteries
    • Soft Touch Ceiling
    • Bed Maxxair Power Vent Fan w/ Cover
    • Porcelain Toilet
    • Curio Glass in Overhead Kitchen Cabinets

  • Prism Elite Standard Exterior Features & Options

    • Integrated Fiberglass Running Boards
    • Full Body Paint: Arctic, Smokey Mountain, Everglade, Cacti Green, or Harbor Blue
    • 15,000 BTU Low Profile A/C with Heat Pump
    • Exterior Entertainment Center
    • Upgraded MorRyde Cargo Doors
    • Rear Fiberglass Cap
    • Armless Awning

  • Prism Optional Features

    • Two Single Color Full Body Paints w/ Black Aluminum Wheels (Optional): Cacti Green or Harbor Blue
    • Electric Stabilizer Jacks
    • 200W Roof Solar
    • Bed MaxxAir Power Vent Fan and Cover (Included w/ Elite Package)
    • Coach Deluxe MaxxAir Power Vent Fan Cover (Included w/ Elite Package)
    • Hydraulic Leveling Jacks
    • Exterior Entertainment Center (Included w/ Elite Package)
    • Dual AUX Battery (Included w/ Elite Package)
    • Cockpit Folding Table
