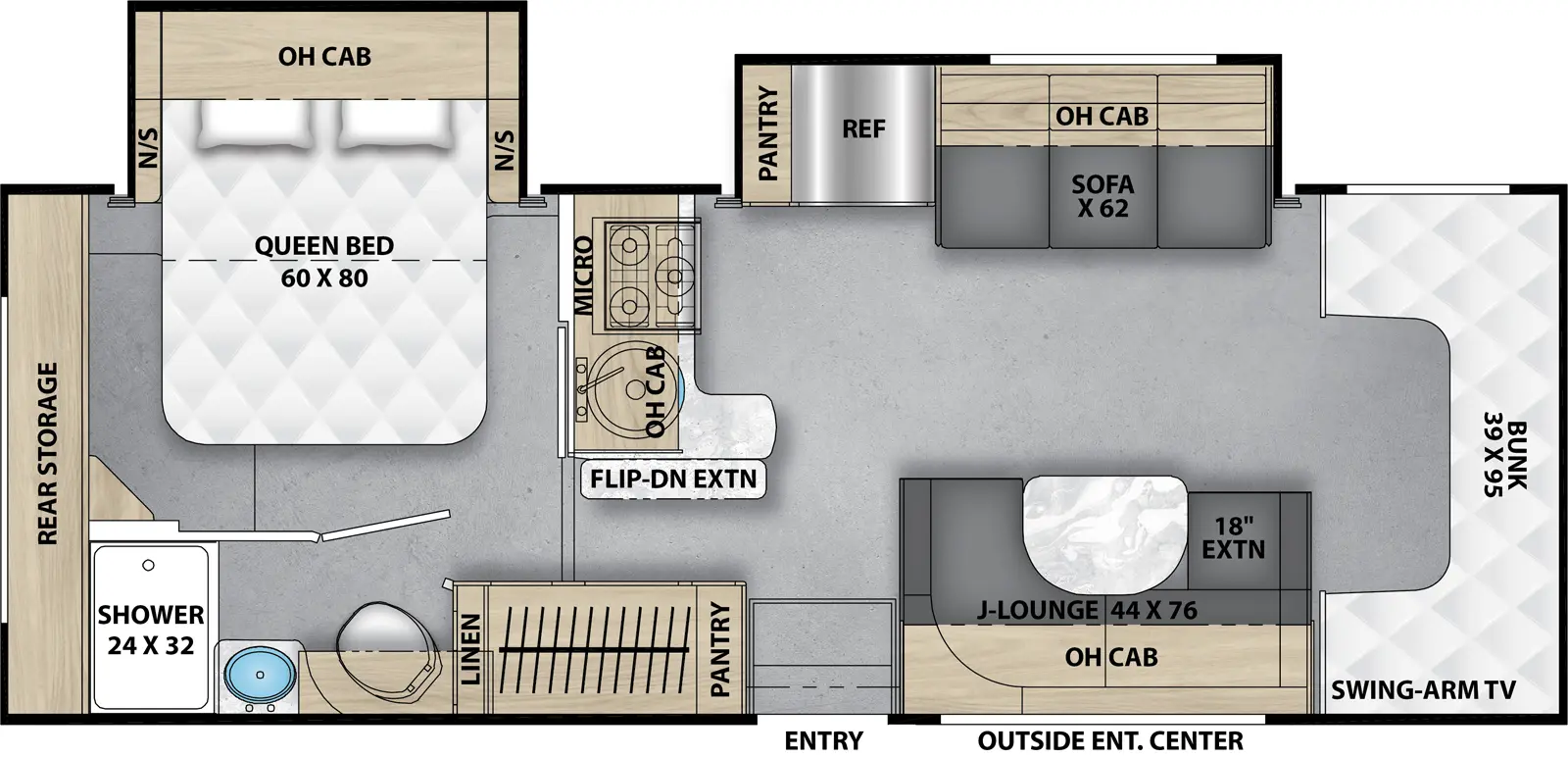

26XG Floorplan

Wheelbase
190"
GVWR
14,500 lb.
GCWR
22,000 lb.
GAWR Front
5,000 lb.
GAWR Rear
9,600 lb.
Fuel Capacity
32 gal.
LP Tank Capacity
70 lb.
Exterior Length
29' 4"
Exterior Height
10' 11"
Exterior Width
100"
Fresh Water
50 gal.
Gray Water
31 gal.
Black Water
31 gal.
Awning Size
14' Thule

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Cross Trail XL Standard Interior Features

    • Kitchen Flip Up Countertop Extension
    • Upgraded Mattress
    • Tankless Water Heater
    • 32” Coach TV w/ Removable Bracket for Exterior
    • Spacious Floorplans with Maximized Storage Space
    • Sand Dune Woodgrain
    • Bed Area 110v/12V CPAP Ready Area
    • 13,500 BTU Non-Ducted Roof A/C
    • Thermofoil Countertops
    • Cabover Child Safety Net and Ladder

  • Cross Trail XL Standard Exterior Features

    • Starlink Prep
    • Exterior TV Prep with Bracket
    • Black Armed Power Awning
    • Roof Solar Prep
    • 30AMP Power Cord
    • NPS 4.5kw Gas Generator
    • Partial Paint with Grey 4,000 Lamilux Fiberglass Sidewalls (E-Series Only)
    • Shortened Front Nose Overhang
    • Heated Holding Tanks
    • Exterior Safety Grab Handle
    • Azdel Composite Sidewall Material
    • LP Quick Connect
    • Rear Ladder Prep

  • Cross Trail XL Ford E-Series Chassis (22XG, 23XG, 26XG)

    • 7,500lb Towing Hitch (E-450)
    • 10” Touch Screen Display w Carplay
    • 7.3L V8 Gas Engine
    • Ford E-Series Chassis
    • Electronic Stability Control
    • Power Windows & Locks
    • Factory Reclining Pilot and Passenger Seats
    • Aluminum Running Boards
    • 55 Gallon Fuel Tank
    • 6-Speed Torque Shift Transmission
    • TPS
    • Cruise Control
    • Dash Air Conditioning
    • Stainless Steel Wheel Liners

  • Cross Trail XL Optional Features

    • Driver Swivel Seat (22XG, 26XG)
    • 400w Roof Solar
    • 200W Roof Solar
    • Cockpit Folding Table (N/A 20CB)
    • Equalizer Stabilizer Jacks (N/A 20CB)
    • Spare Tire (N/A 20CB)
    • Dual A/C – Front Ducted 15,000 BTU & Rear Non-Ducted 15,000 BTU (26XG Only)
    • Dual Aux Batteries
    • Passenger Swivel Seat (22XG, 23XG, 26XG)
    • Exterior Windshield Cover
    • Sideview Cameras
    • Coach Maxxair Power Vent Fan Cover (N/A 20CB)
