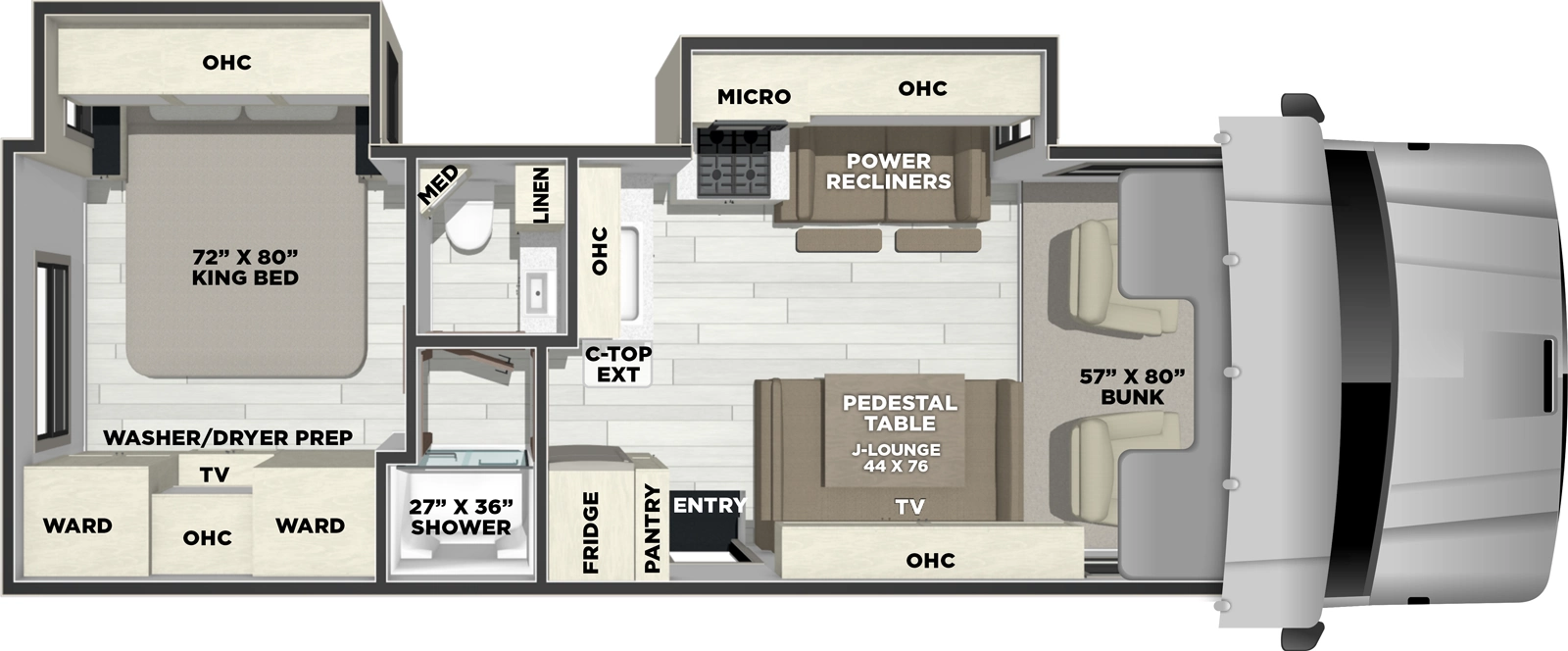

330DS Floorplan
The 330DS bedroom features a 72" X 80" walk-around King bed with power incliner, large dual wardrobes and multiple drawer storage. The bedroom is prepped for an optional washer/dryer combo. The 90-degree wrap-around kitchen design comes with ample countertop space, residential-style over-the-range convection microwave and 10 cu. ft. 12V refrigerator. The living/dining area features opposing side seating with theater seating and J-Lounge dinette/sofa/sleeping area.
- Wheelbase
- 243"
- GVWR
- 19,500 lb.
- GCWR
- 34,000 lb.
- GAWR Front
- 7,500 lb.
- GAWR Rear
- 15,000 lb.
- Fuel Capacity
- 65 gal.
- LP Tank Capacity
- 69 lb.
- Exterior Length
- 33' 10"
- Exterior Height
- 11' 3"
- Exterior Width
- 100"
- Fresh Water
- 65 gal.
- Gray Water
- 77 gal.
- Black Water
- 49 gal.
- Awning Size
- 21'
- Wheelbase
- 243"
- GVWR
- 19,500 lb.
- GCWR
- 34,000 lb.
- GAWR Front
- 7,500 lb.
- GAWR Rear
- 15,000 lb.
- Fuel Capacity
- 65 gal.
- LP Tank Capacity
- 69 lb.
- Exterior Length
- 33' 10"
- Exterior Height
- 11' 3"
- Exterior Width
- 100"
- Fresh Water
- 65 gal.
- Gray Water
- 77 gal.
- Black Water
- 49 gal.
- Awning Size
- 21'
Specifications Definitions
GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.
GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.
GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.
UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.
CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.
Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.
The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
Note: Specifications are subject to change without notice.
-
Top Features (2026 Model Year)
- Large Cab-Over Area with Cup Holders, Storage and USB Ports (57" x 95”)
- CRV SuperSprings Ride - Front & Rear SumoSprings & Rear Helper Spring
- Dual 15,000 BTU A/C with Dual Heat Pumps
- Trash Can in Kitchen Base
- Induction Cooktop w/ Oven & Convection Microwave
- 4x4 Diesel Chassis - Chevy Silverado 5500 or International CV
- Solid Surface Kitchen Galley & Bathroom Countertops
- Slam-latch Exterior Compartment Doors
- Power Inclining King Size Bed (72 x 80”) (330DS, 340BH)
- Starlink Prep
- Power Dual Recliners
- Lit 12V Vanity Mirror
- Azdel Composite Sidewall & Cabover Floor Construction
- 200W Solar Panel w/ 30-amp Controller (Prepped for additional panels)
- Fiberglass Shower (1-Piece) w/ Aqua View SHOWERMISER
- 14,500 lb. Max Capacity Tow Hitch
- 50-Amp Service w/ Electric Power Cord Reel
-
Standard Key Features
- Outside Entertainment Center
- Power Vents w/ MaxxAir Covers (Front & Rear)
- Smart 40” 12V Coach TV & 32” Bedroom TV
- Single-automatic Entry Step
- Aluminum Wheels
- Upgraded Memory Foam Mattress
- 1 Year of RV Roadside and Technical Assistance (Specialized Dispatch Service)
- Kitchen Pop-up Outlet & Wireless Charger
- Enclosed Termination Box
- 14,500 lb. Towing Hitch
- Hydraulic Leveling Jacks
- Kitchen Faucet w/ Sprayer
- Dash Radio Infotainment System with 8” Touchscreen
- Electric Power Cord Reel
- Rear-View Mirror Back-up/Sideview Camera Monitor
- Large Entry Door Handles
- Premium Running Boards
- Exhaust Brake
- Frameless Exterior Windows
- Molded Fiberglass Front Cap w/ Window
- LP Quick Connect
-
ICON Package (Mandatory)
- Winegard 360Air+ 5g/WiFi Booster
- Tankless Water Heater
- Auto Gen Start w/ Dual Batteries
- 50-amp Service
- Power Inclining King Bed
- Porcelain Toilet with Push-Button Macerator
- 2,000W Inverter
-
Interior Appointments
- Large Metal Interior Safety Grab Handle at Entrance Door
- Frinton Bisque Wood Grain
- Solid Surface Kitchen Countertop
- Premium Vinyl Flooring
- Slow-Close Roller Bearing Drawer Guides
- Vinyl Padded Up and Angle Pads
- Dinette Dog Food Bowl Drawer
- J-Lounge Dinette/Sofa/Sleeping Area (330DS)
- Storage above Entrance Door with HDMI and Charge Station
- Angled Over-Head Two Tone Cabinet Doors
- Single Child Tether at Forward Facing Dinette
- Power Dual Recliners with Heat & Massage
- Day/Night Shades
-
Interior Equipment
- Smoke Detector
- Fire Extinguisher
- Touch Screen Radio & Back Up Monitor
- Carbon Monoxide Detector
- Side View Cameras
- LP Leak Alarm
- Smart 40" 12V Coach TV
- Winegard Air 360+ and 5G/WiFi Booster
- Smart 32” 12V Bedroom TV
- Rear Color Backup Camera
-
Electrical & Heating
- Exterior LP Quick Connect
- 50-amp Power Cord w/ Electric Power Cord Reel
- Auxiliary Battery Disconnect
- 200W Solar Panel w/ Backer for 2 additional panels
- 30 AMP Controller at Entry Cabinet
- Exterior Entertainment Center w/ TV & Soundbar
- Wireless Phone Charger in Kitchen Galley
- 2,000W Inverter
- Wall Mounted Thermostat (Front & Rear)
- Onan 5500 LP Generator
- Auto Generator Changeover
- Power Vent Fan w/ MAXXAIR Vent Cover (Front & Rear)
- GFI Circuit
- Auto Generator Start & Dual Auxiliary Batteries
- Dual 18,000 BTU Ducted Furnaces
- 55 AMP Electronic Converter
- Dual A/C - 15,000 BTU w/ Front Heat Pump (Front Ducted)
-
Exterior
- Power Awning w/ LED Light
- Exterior LED Marker and Halo Taillights
- On-the-Go Rear Ladder Block (Prep)
- Rear Steel Bumper
- Steel Entry Step Box w/ Single Power Step
- Hydraulic Leveling Jacks
- Crown Laminated TPO Roof
- Azdel Composite Sidewall and Cabover Construction
- Vacu-bond Laminated Walls, Roof, and Floor
- Full Aluminum Framed Walls, Roof, Floor Structures
- Large Exterior Safety Grab Handle
- Molded Fiberglass Front Cap with Window & LED Lights
- Slide Out Awning Toppers
- Plasti-Cote Metal Exterior Trunk Boxes
- Aluminum Wheels
- Slam Latch Trunk Doors
- Upgraded Running Boards
-
Kitchen Galley
- 10 cu. ft. 12V Glass Door Refrigerator
- Kitchen Faucet with Pull down Sprayer
- Solid Surface Kitchen Countertop w/ Extension
- Undermount Stainless Kitchen Sink & Solid Surface Cover
- Lighted Kitchen Backsplash - Mobile App VersiControl
- Induction Cooktop
- Convection Microwave
-
Bathroom
- Fiberglass 1-piece Molded Shower
- Water Panel w/City, Tank, Winterize, & Waste Tank Flush Connections
- Enclosed Termination Box
- Solid Surface Countertop w/ Stainless Steel Undermount Sink
- Porcelain Macerator Toilet
- Low Point Drain and Winterize Valve at Fresh Tank
- Power Bath Vent
- Demand Water Pump
- Upgraded Shower Faucet & Head
- Heated Tank Pads
- Skylight Over Shower
- Shower Miser Water Saver System
- Washer & Dryer Combo Prep
- Tankless Water Heater
-
Sleeping
- Upgraded Memory Foam Mattress
- Cabover Bunk 57” x 95” w/ Privacy Curtain
- 72" x 80" Power Inclining King Bed (330DS, 340BH)
- Upgraded Bedspread & Headboard
- Child Safety Net & Ladder
-
Chassis: Deluxe Chassis Package
- Power Windows and Door Locks
- Cruise Control
- Exterior Remote Mirrors
- Tilt Steering Wheel
- 4x4 Limited Slip Differential
- 14,500 lb. Towing Hitch with 7-way Plug
- 65-Gallon Fuel Tank
- Exhaust Brake
- Dash Air Conditioning
- Integrated Trailer Brake Controller
- Front Stabilizer Bar
- Engine Block Heater
- Driver and Passenger Air Bags
- 10-way Power Factory Reclining Driver Seat
- Dual Alternators 150-amp / 220-amp
-
Options
- Lithium Package - Dual 270 Amp. 3000W Inverter, 600W Roof Solar
- Dual Pane Windows
- Washer/Dryer Combo
-
Warranty Information
- COACHMEN RV LIMITED WARRANTY: 12 Month /12,000 Mile Limited Bumper-to-Bumper
