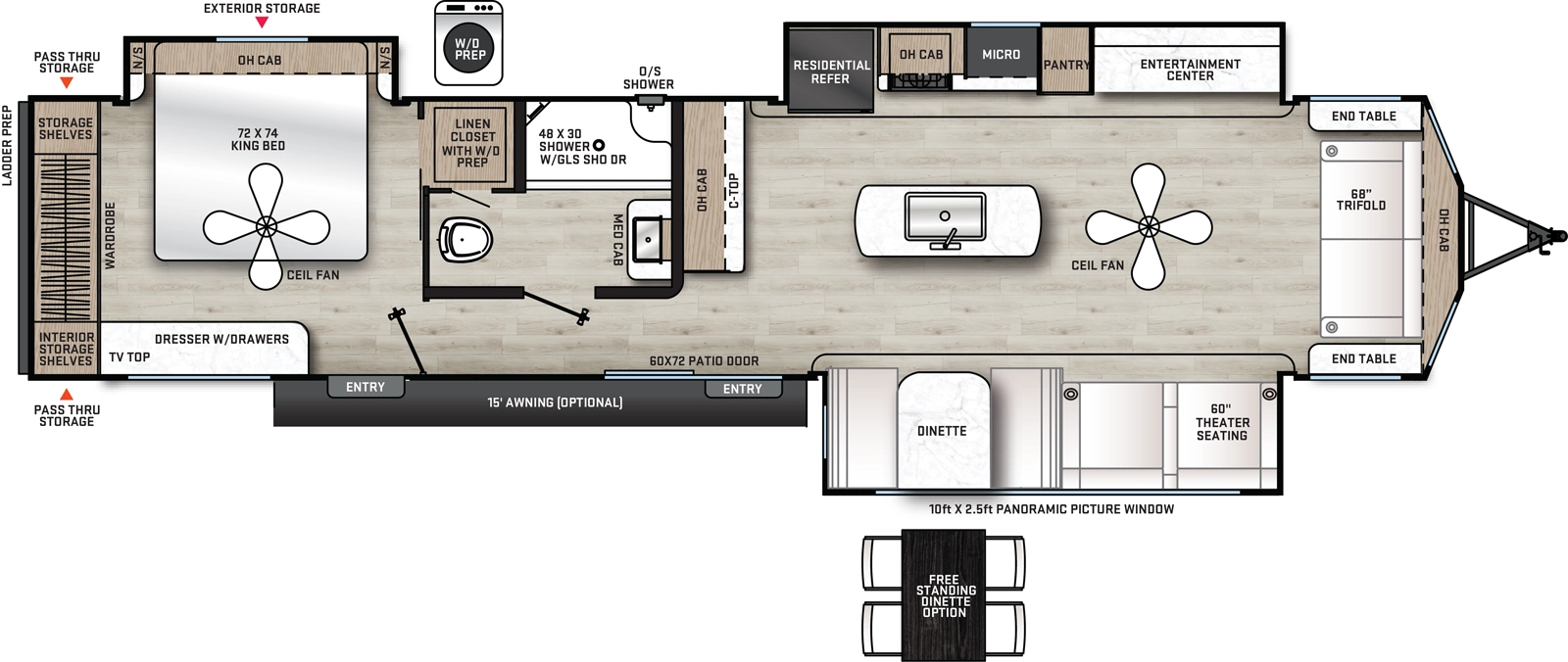

Catalina 39MKTS Floorplan
- Hitch Weight
- 1,228 lb.
- GVWR
- 11,771 lb.
- UVW
- 10,271 lb.
- CCC
- 1,500 lb.
- Exterior Length
- 42' 11"
- Exterior Height
- 11' 9"
- Exterior Width
- 96"
- Fresh Water
- 38 gal.
- Gray Water
- 88 gal.
- Black Water
- 30 gal.
- Awning Size
- 15'
Specifications Definitions
GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.
GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.
GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.
UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.
CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.
Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.
The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
Note: Specifications are subject to change without notice.
-
EXTERIOR FEATURES
- Friction Hinged Black Glass Entry Door with Window (N/A 35FME)
- Exterior 110V G.F.C.I Protected Receptacle
- Bottle Openers (Exterior Camp Kitchens)
- Universal Solar Prep w/Roof & Chg. Contoller Connections & Wiring
- LP Quick Connect
- G20 Tinted Privacy Windows
- Hot/Cold Outside Utility Shower w/ Hands Free Holder
- Flush Mount Baggage Doors w/Radius Corners
- Exterior RG-6 Coax Cabling and Satellite Prep
- Siphon 360 Holding Tank Roof Vent
- XL Swing Arm Entry Assist Handle (Main Entrance Only)
- Large Front Bay Windows (N/A 43CONDO, 44CONDO)
- Rain Gutters with Drip Spouts
- Premium JBL Exterior Speakers
- Pets - "Leash Link" Quick Hookup D-Ring
- Exterior TV Hookup
- Heavy Duty Standard Tongue Jack
- Stabilizer Jacks
- Black Tank Flush
- Rear Ladder Prep
- Residential-Style Sliding Glass Patio Door
- Black ABS LP Bottle Cover
- Battery Disconnect Switch
-
INTERIOR FEATURES
- 12V 14" Living Room Power Vent Fan
- Stainless Steel Drying Rack
- Bedroom Surface Mounts USB Ports (Each Night Stand)
- Premium Serta Mattress
- Shower/Coat Hooks
- Easy Access Booth Dinette Storage Doors
- Under Bench Dinette Storage (Per Floorplan)
- Congoleum Woodplank Linoleum Flooring
- All-In-One Control Panel with Dimmer Switch
- Theater Seating (39MKTS, 44CONDO)
- Medicine Wall Cabinet with Mirror
- GE Stainless Microwave W/Glass Turn Table
- ABS Tub/Shower Surround w/Shelves
- 4000 Lumin LED Interior Touch Lighting
- Directional Master Bed Reading Lights
- Hard Valance Window Treatments
- Premium JBL Interior Speakers
- Solid Bunk Room Door (Per Floorplan)
- Underbed Storage
- Full Lino in Slide-Outs and Bedrooms (Carpetless)
- USB Surface Mounts Near Bunk Beds
- Skylight Above Tub/Shower (N/A 35FME, 42CONDO, 43CONDO, 44CONDO)
- Kitchen USB's & Outlets
- High Pressure Glass Rinser
- GE Stainless 21” 3-Burner Gas Range with Metal Back-Lit Knobs (39MKTS, 40BHTS)
- Glass Step-In Shower w/ABS Surround
- Solid Master Bedroom Door
- Fireplace w/Electric Heater in the Living Room
- Master Bedroom Overhead Cabinets (N/A 35FME)
- Solid Surface Countertops Throughout (39MKTS, 40BHTS Kitchen Area Only, Seamless Thermofoil Countertops Outside of Kitchen Area)
- Porcelain Toilet(s)
- Pedestal Thermofoil Dinette Table (N/A 35FME, 42CONDO)
- Brick Style Backsplash
- Paper Towel Holder
- Mirrored Wardrobes in Master Bedroom (N/A 35FME)
- Residential-Style Kitchen Faucet w/Pull Down Sprayer
- Deep Basin Farm Style Sink
- Range Hood
- Designer Fitted Master Bed Sheet
- Washer/Dryer Prep (39MKTS, 40BHTS)
- Premium Audio JBL Aura Cube Multi-Zone Function Media Center
-
CONSTRUCTION & EQUIPMENT FEATURES
- Easy-Trac Rack and Pinion Through Frame Main Slide-Out(s)
- Premium Exterior Graphics Package
- Norco Electromagnetic, Powder Coated Chassis
- Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
- Cross-Braced Engineered Roof Trusses with 5" Crown
- Residential-Style In-Floor Ducted Heat
- 5" Floor To Frame Steel Lag Bolts
- 2"x3" Floor Joists on Approximately 12" Centers
- 5/8" Tongue & Groove StableDeck Flooring
- 3/8" Fully Decked Walk-On Roof
- Platinum .024" Aluminum Exterior w/.030 Skirt Metal
- R-7 Fiberglass Insulation Throughout
- 50-amp Elect. Service
- 35,000 BTU Auto-Ignition Furnace w/Wall Thermostat
- 60,000 BTU GE Tankless On Demand Water Heater
- EZ Lube Axles w/Leaf Spring Suspension
- Water Heater By-Pass Winterization Kit
- Polished HD Aluminum Fender Skirts
- Magnadyne Antenna
- Cambered Structural Steel I-Beam Frame
- Bumper w/ Drain Hose Carrier and End Caps
- Full Length Frame Outriggers
- Darco Subfloor Protective Wrap/Enclosure
- Roto-Cast Holding Tanks
- 5/8" Plywood Under Bed & Dinette Base
- Seamless Alpha Roof Membrane with Lifetime Warranty
- 15,000 BTU Fully Ducted A/C with Heat Pump
- Self Adjusting Brakes
- 84" Interior Height (7') (39MKTS, 40BHTS)
- Magnetic Hands Free Baggage Door Latches
- 12V Demand Water Pump
-
SAFETY FEATURES
- LP/CO Gas Detector
- Specialized Dispatch Services (1 YR Roadside Assistance)
- Fire Extinguisher
- Fire Escape Windows
- Entrance Door Window
- Dead-Bolt Lock on Entry Door
- Smoke Alarm
-
OPTIONS
- 50-amp Svc with (3) Non-Ducted 18,000 BTU Furrion High Efficiency A/Cs with Heat Pumps (39MKTS, 40BHTS)
- Non-Self Contained w/Porcelain Toilet
- Power Theater Seating with Reclining Features (N/A 35FME, 42CONDO, 43CONDO) (Standard 39MKTS, 44CONDO)
- Spare Tire w/ Tire Cover (39MKTS, 40BHTS)
- CSA Standards
- Enclosed, Fully Sealed Corrugated Underbelly (N/A Non-Self Contained Option)
- Detachable Hitch (N/A 42CONDO, 43CONDO, 44CONDO)
- Peak Performance Solar Package - 30A Controller w/ 200W Panel
- Stackable Washer/Dryer Unit (39MKTS) (Standard 35FME, 42CONDO, 43CONDO, 44CONDO)
- Free Standing Table w/4 Chairs (39MKTS, 40BHTS) (Standard 43CONDO, 44CONDO)
