Explore 2026 230FS Motorhomes

Home > Leprechaun > 230FS

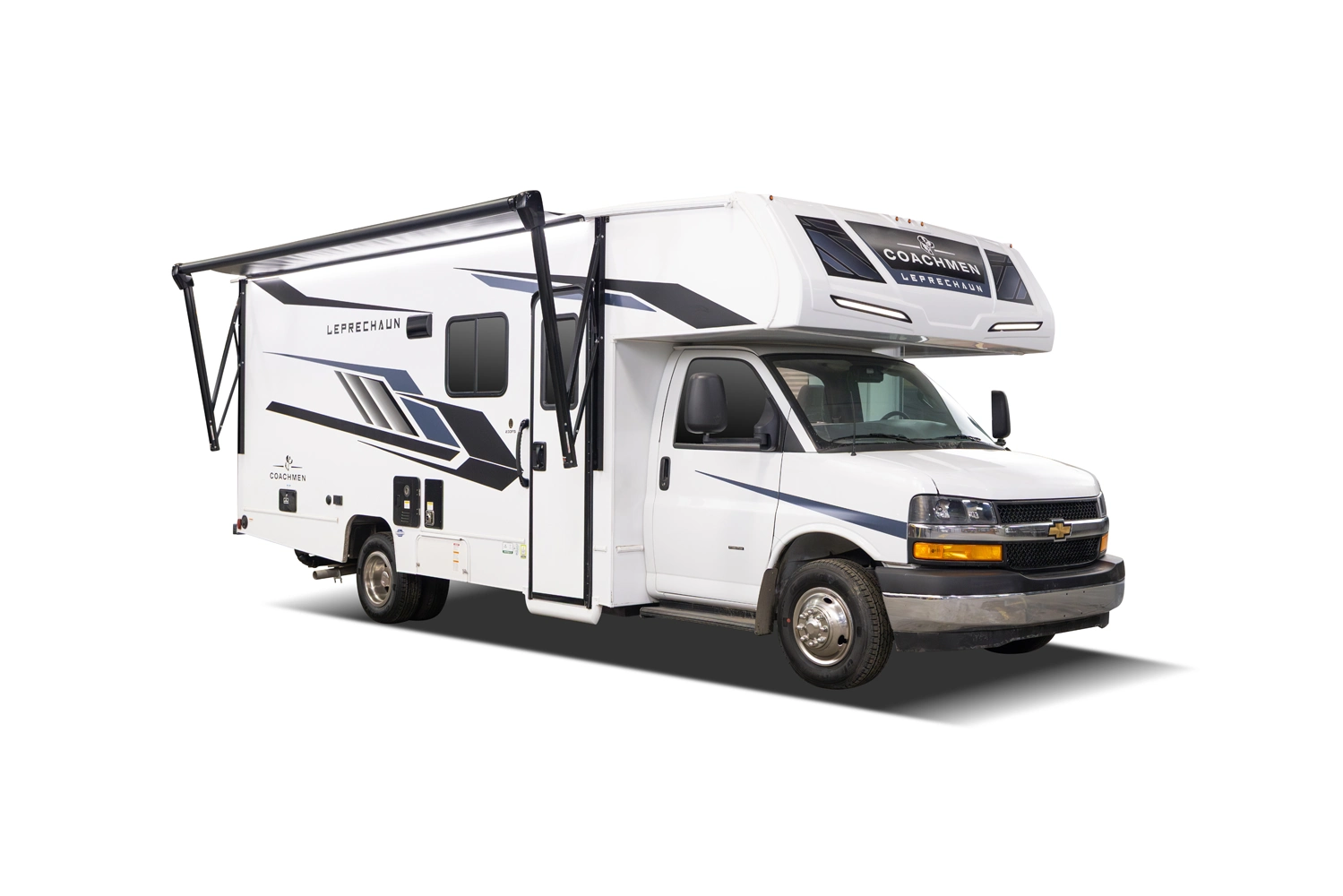

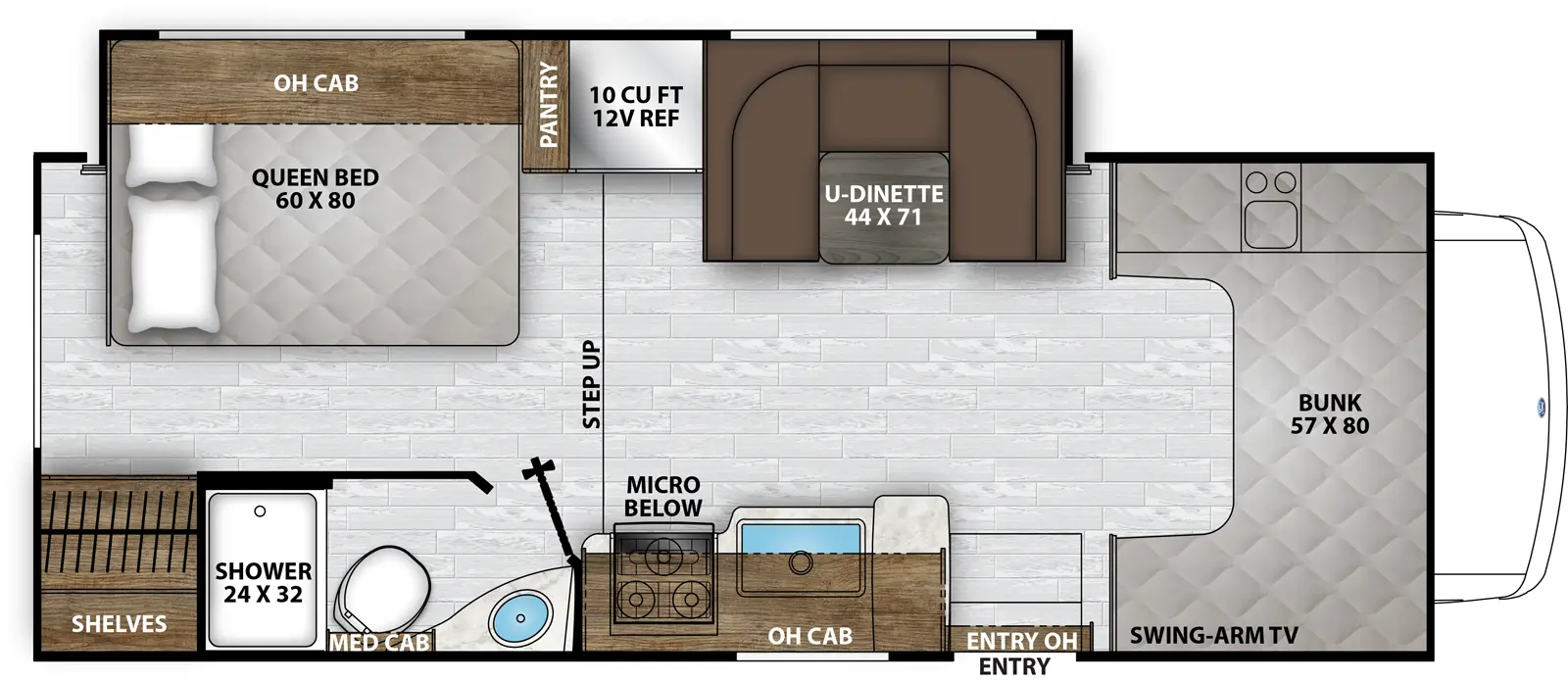

The Leprechaun 230FS floorplan has one entry and one slide out. Exterior features include: 17' awning. Interiors features include: bunk over cab and u-dinette.

Wheelbase: 177"
GVWR: 12,300 lb.
GCWR: 20,000 lb.
GAWR Front: 4,300 lb.
GAWR Rear: 8,600 lb.
Fuel Capacity: 57 gal.
LP Tank Capacity: 86 lb.
Exterior Length: 26' 6"
Exterior Height: 10' 10"
Exterior Width: 100"
Interior Height: 83"
Fresh Water: 43 gal.
Gray Water: 31 gal.
Black Water: 31 gal.
Awning Size: 17'

Wheelbase: 176"
GVWR: 12,500 lb.
GCWR: 18,500 lb.
GAWR Front: 5,000 lb.
GAWR Rear: 8,500 lb.
Fuel Capacity: 55 gal.
LP Tank Capacity: 86 lb.
Exterior Length: 26' 0"
Exterior Height: 10' 10"
Exterior Width: 100"
Interior Height: 83"
Fresh Water: 43 gal.
Gray Water: 31 gal.
Black Water: 31 gal.
Awning Size: 17'

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

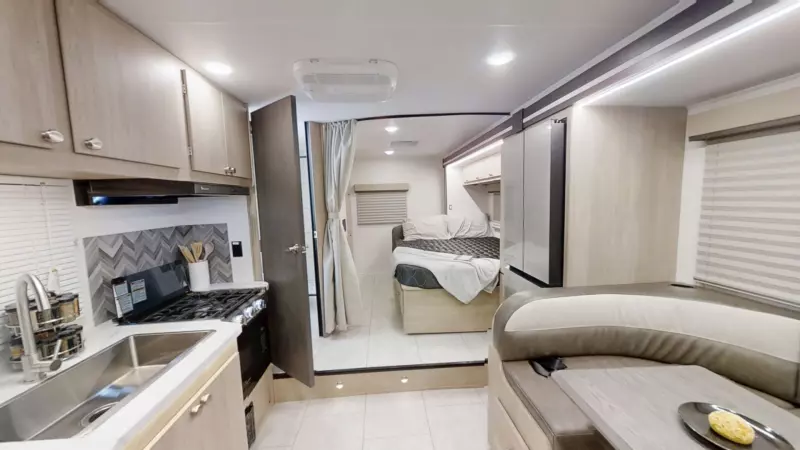

Explore 3D Space

230FS Floorplan Motorhomes Features & Options

- Solar Power Prep on Roof – (Optional 200W Panel w/ 30-amp Controller)
- AlphaPly TPO Seamless 1-Piece Roof Material (Lifetime Warranty)
- On-Demand Tankless Water Heater & AquaView Showermiser
- Max-Length Power Patio Awning with LED Light Strip (15’ through 21’ Lengths)
- 15,000 BTU A/C with Heat Pump (Optional Rear A/C on 260DS, 260MB, 308KB & 319MB)
- Large 57 x 80" Cab-Over Sleeping Area with Cup Holders & Storage (800 lb. Capacity)
- Azdel Composite Sidewall & Cabover Floor Construction
- Residential 80" Length Queen & King Size Beds (N/A on 220XG & 260MB Murphy-Beds)
- CRV Super Springs Ride – Self-adjusting Rear Helper Spring (N/A 220XG & 270QB)
- Starlink Prep
- 10 cu. ft. 12V Refrigerator

- Electric Stabilizer Jacks (Optional) (N/A 220XG)
- HDMI Port for Living Room TV
- Dynamic Balanced Driveshaft System
- Full Body Paint (Optional): Ocean or Murdock

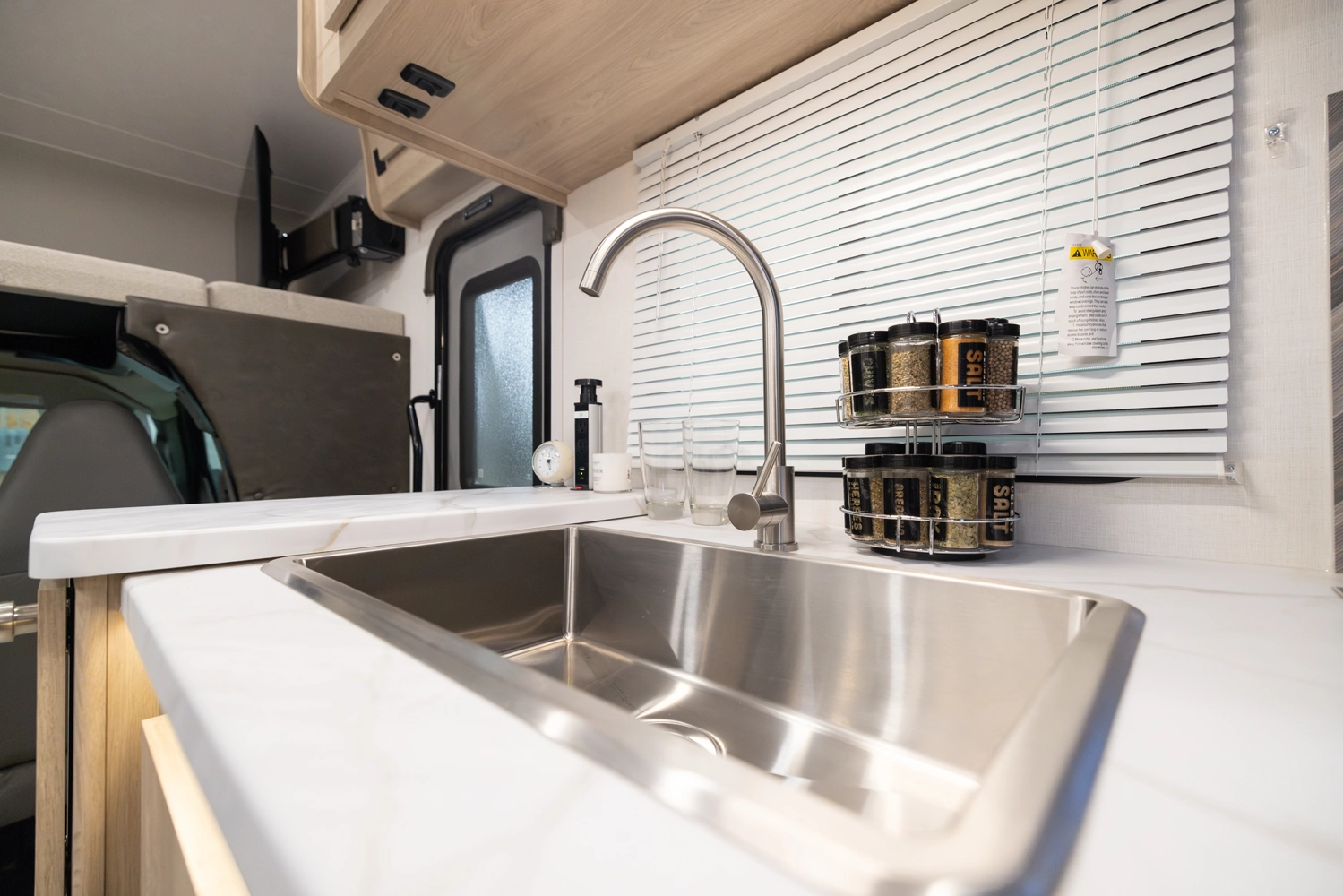

- Top Mount Stainless Steel Farmers Kitchen Sink (N/A 260DS)
- 5,000 lb. Towing Hitch (Ford E-350)
- Tilt Steering Wheel
- Wall Mounted Thermostat
- 30 Amp Detachable Power Cord (N/A 260MB)
- Vanity Mirror
- Storage Above Entrance Door with HDMI and Charge Station
- EXPLORER PACKAGE (MANDATORY)
- Exterior: Leprechaun Graphics Package
- Exterior LP Quick Connect
- Solar Prep at Roof and Entry Door
- Telescopic Bunk Ladder
- Dash Air Conditioning
- Tinted Radius Slider Windows - Safety Glass
- Roto-Cast Rear Warehouse Storage Compartment
- USB Charging Ports
- Power Patio Awning with LED Light Strip
- Bed Area USB Port
- Rear-View Color Backup Camera Monitor

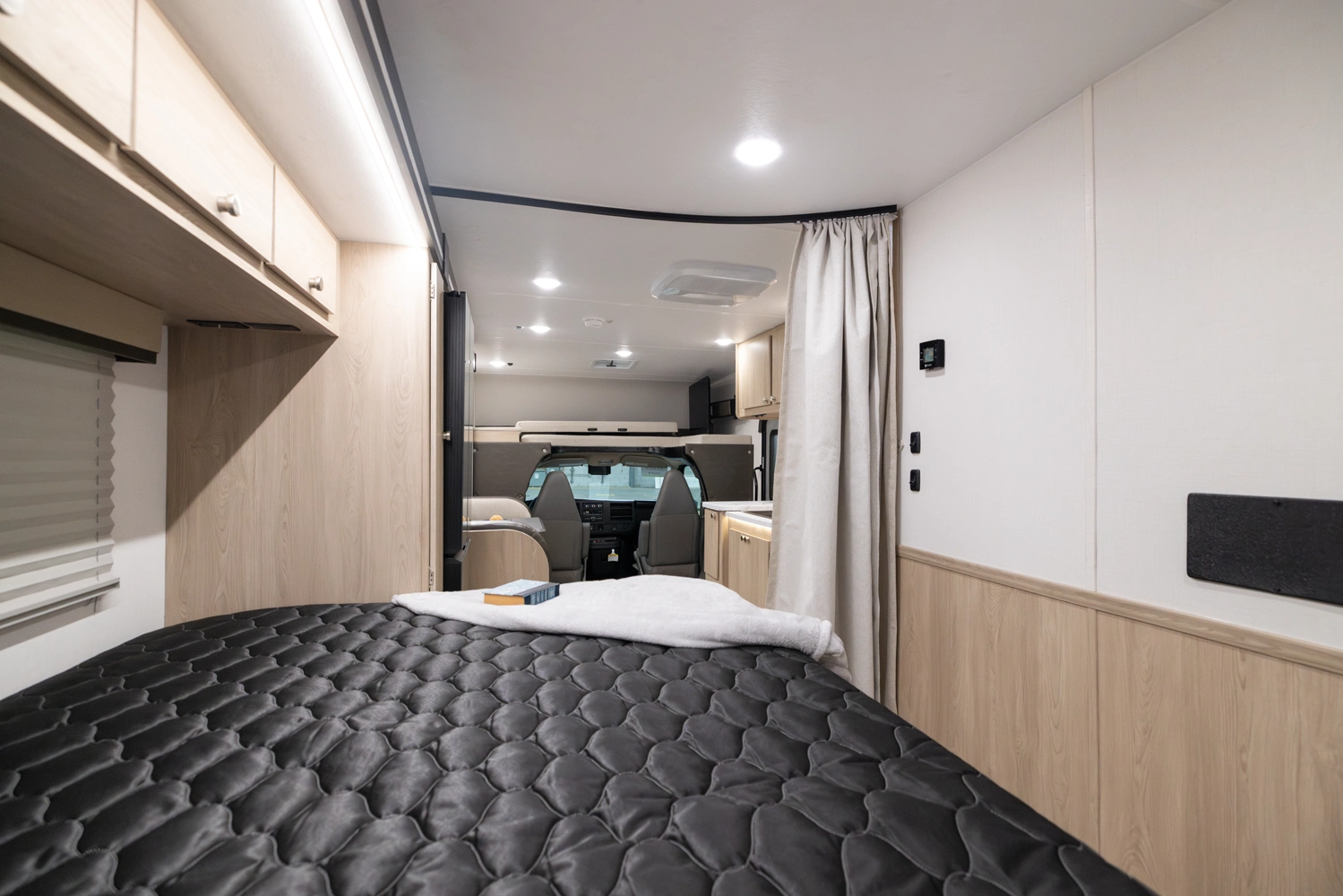

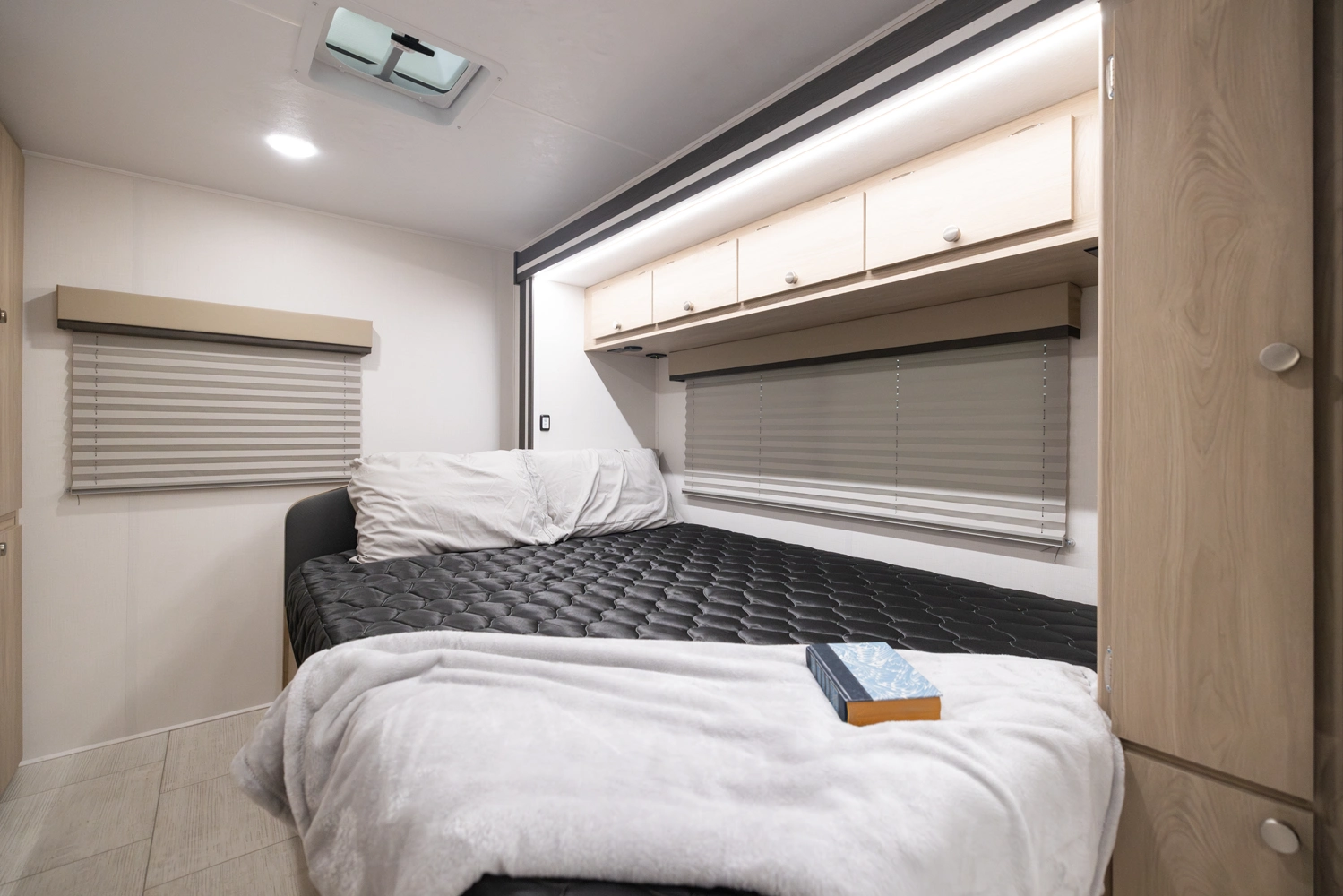

- Queen Bed - 60" X 80" (230FS, 270QB, 319MB)
- 5G/WiFi Booster
- Porcelain Foot Flush Toilet
- 10 cu. ft. 12V Refrigerator
- Power Bath Vent
- Trash Can in Kitchen Base
- Fire Extinguisher
- Steel Entry Stepwell with Auxiliary House Battery Storage
- INTERIOR APPOINTMENTS
- SumoSpring Front Shock Absorbers
- Single Child Tether at Forward Facing Dinette
- Bedroom TV Prep
- Vacu-bond Laminated Walls, Roof, and Floor
- Winegard Air 360+ TV/FM/AM Antenna
- Auto Gen Start
- Black Tank Flush

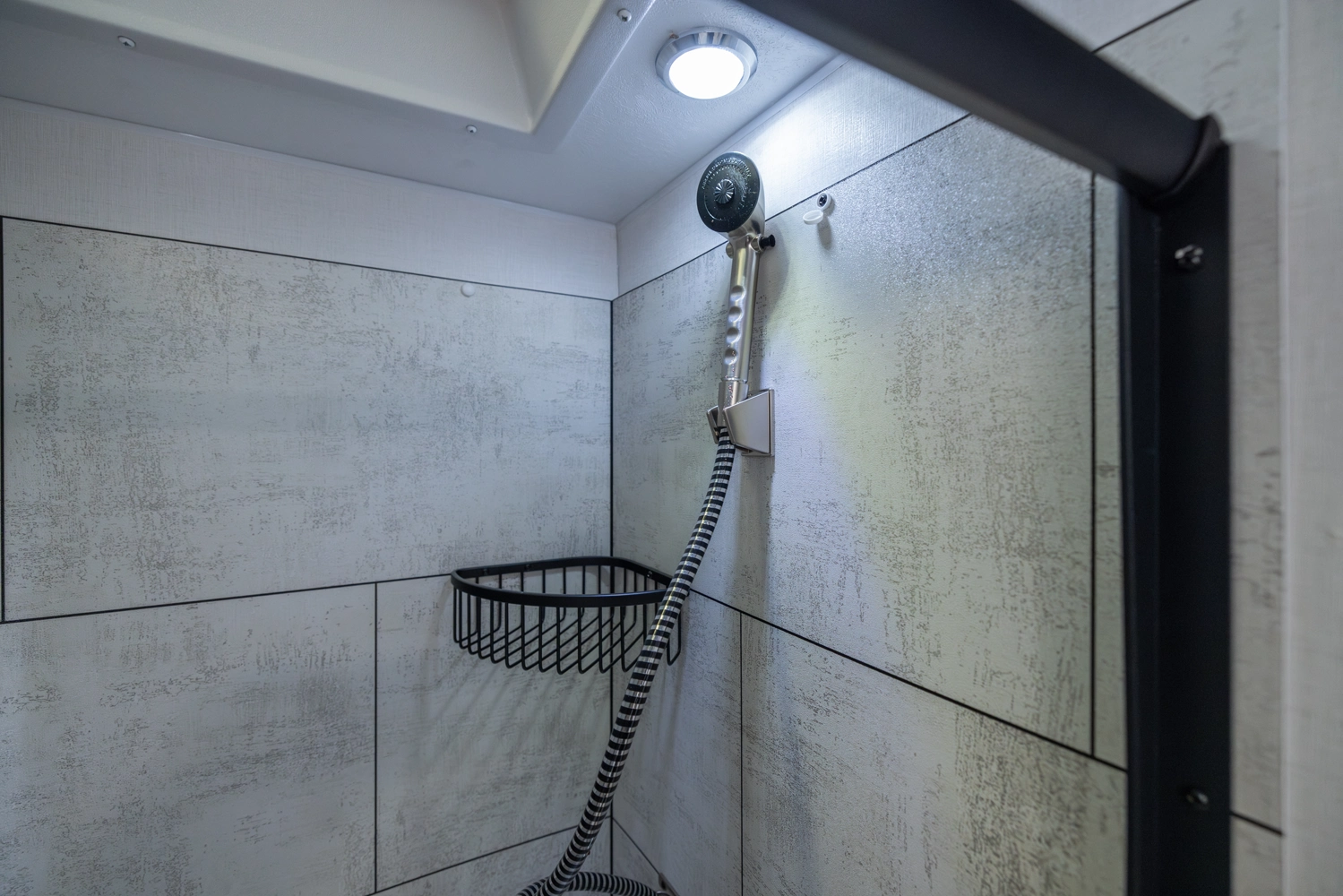

- Premium Shower Head and Faucet
- LP Quick Connect
- Heated Mirrors
- Kitchen Faucet with Spray Head
- SLEEPING
- Exterior Shower
- Pop Up Kitchen Recept with USB and Wireless Charging
- White Fiberglass Walls with Graphics Package
- Cable TV, Portable Satellite Dish Exterior Hookup

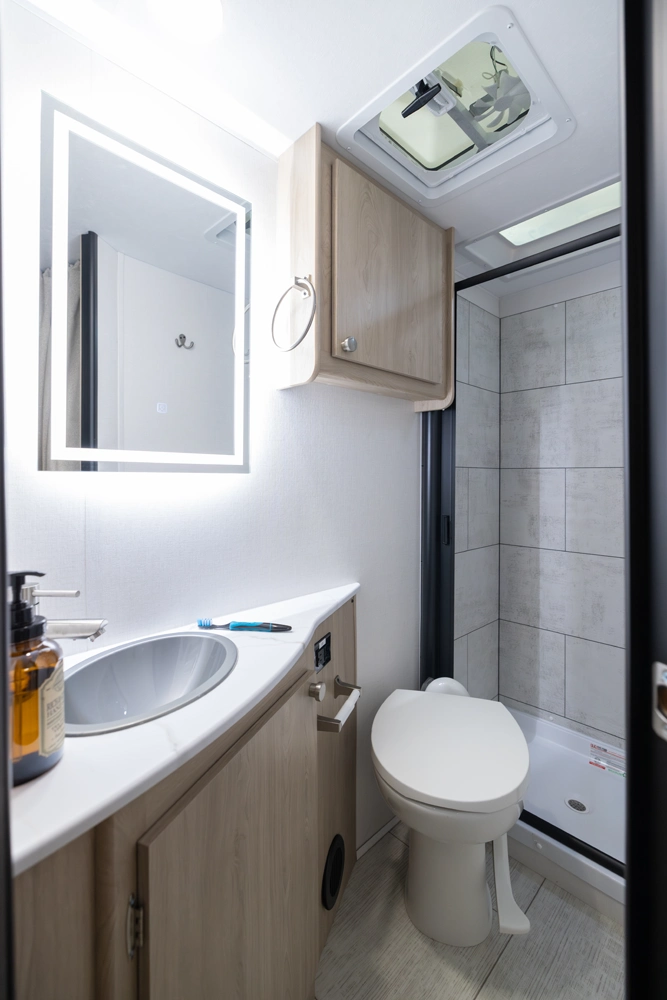

- BATH AND WATER

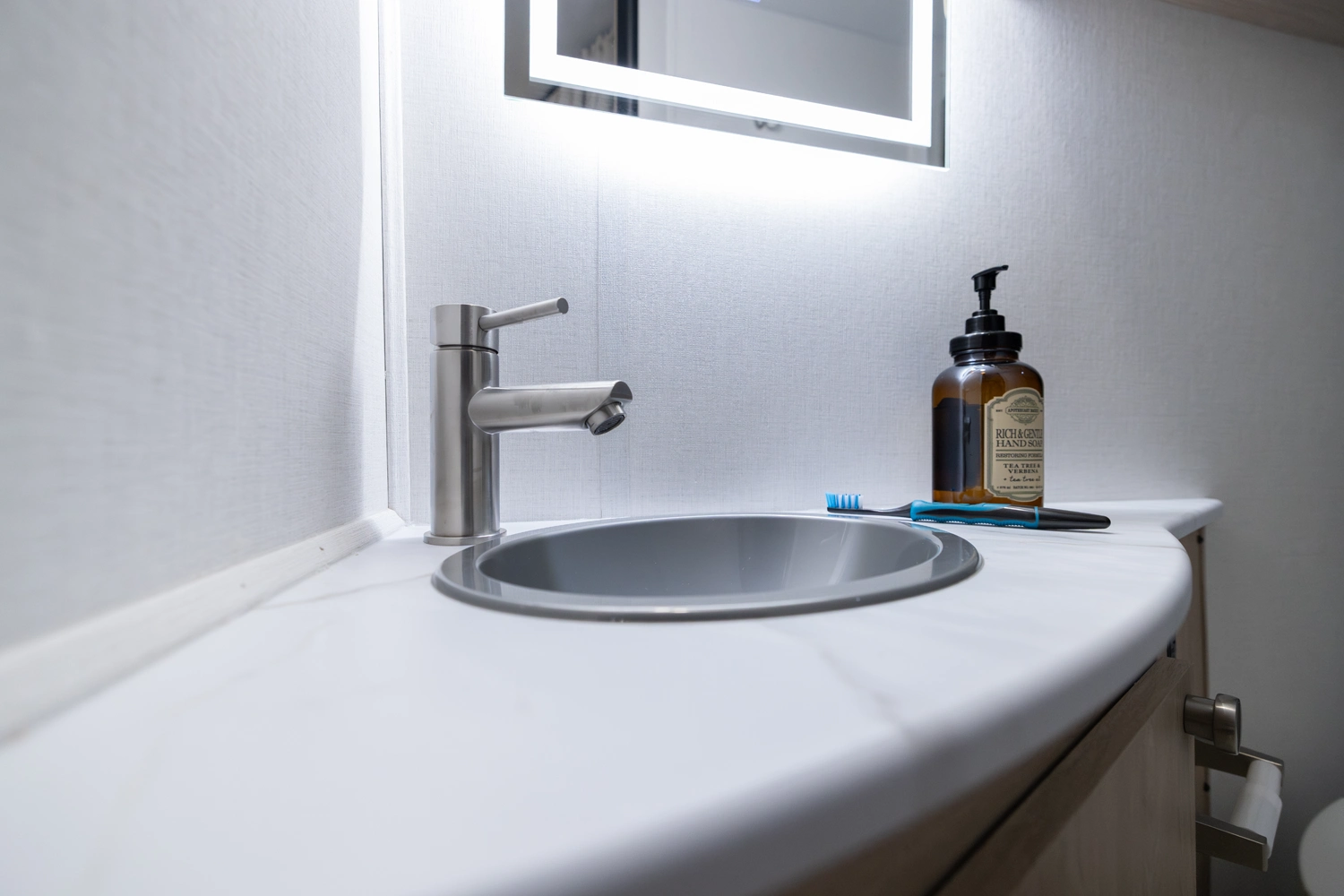

- Single Bowl Lavatory Sink with Single Lever Faucet
- 55 Gallon Fuel Tank (Ford)
- Power Patio Awning with LED Light Strip
- Valet Rod in Closest
- Microwave Oven
- CHASSIS
- EXTERIOR EQUIPMENT
- Back-Up Camera
- NPS 4500 Generator (N/A 260MB)
- Rear Steel Bumper
- Upgraded Exterior Safety Grab Handle
- Equalizer Stabilizer Jacks (N/A 220XG)
- Auto Generator Changeover
- 15,000 BTU Ducted Roof A/C with Heat Pump (260DS, 260MB, 270QB, 308KB, 300RS, 319MB)
- Recessed 3-Burner Cooktop w/Cover
- Solar Panel Connection Ports at Sidewall and Roof
- CRV SUPERSPRINGS RIDE (MANDATORY - N/A 220XG, 270QB)
- ESCALADE PACKAGE (OPTIONAL - N/A CHEVY CHASSIS)
- Slide Out Awning Toppers
- Smoke Detector
- Low Point Drain and Winterize Valve at Fresh Tank
- 7,500 lb. Towing Hitch (Ford E-450, Chevy 3500)
- INTERIOR EQUIPMENT

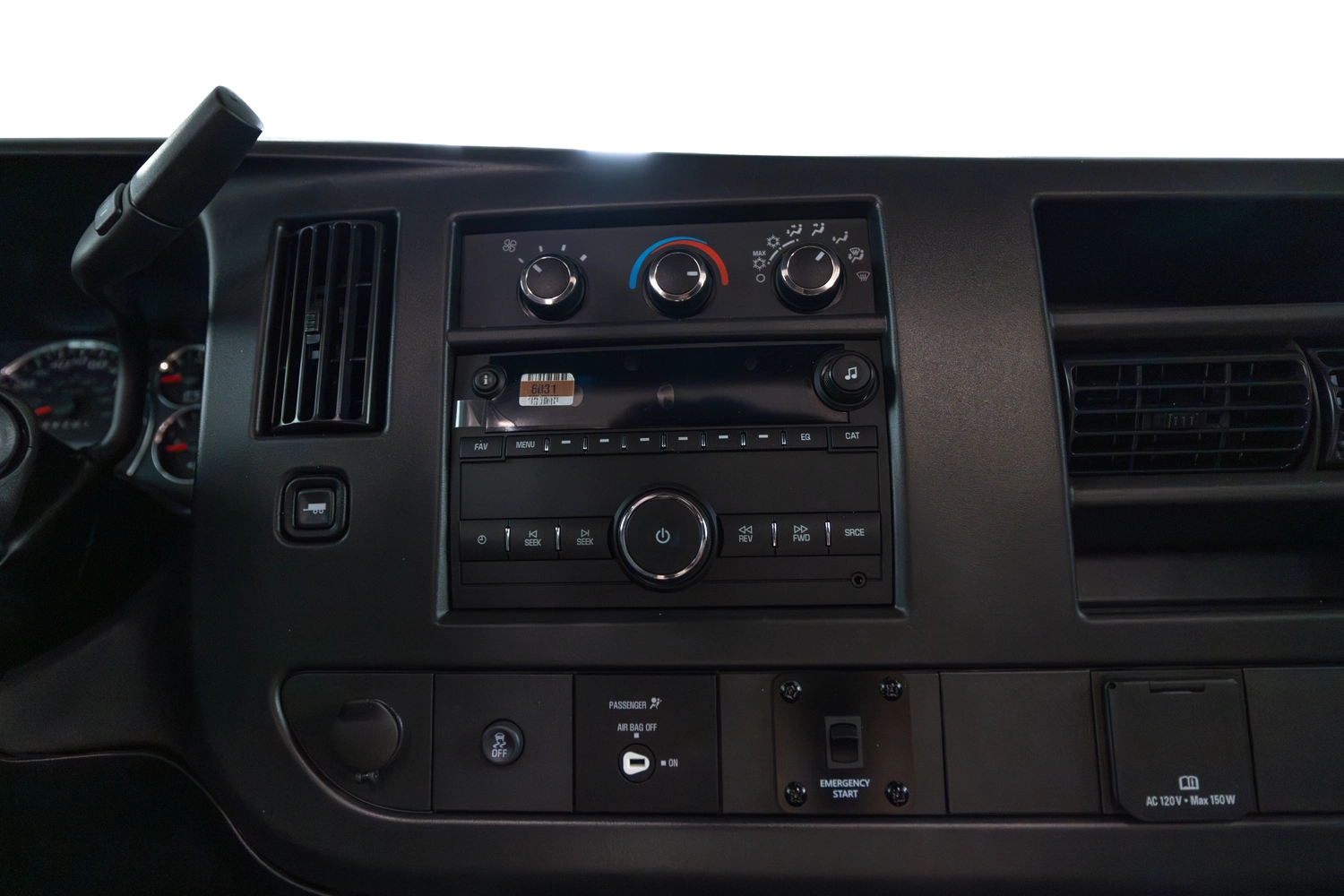

- GM Factory Dash Radio w/Dash Speakers (Chevy only)
- Skylight Over Shower
- Auxiliary House Battery
- Premium One-Piece Thermofoil Countertops
- Carbon Monoxide Detector
- 40" 12V Coach Smart TV
- Starlink Prep
- Interior Safety Grab Handle at Entrance Door
- Power, Lighted Range Hood
- Roll-Away Shower Door
- Exterior Shower
- 10 cu. ft. 12V Glass Door Refrigerator

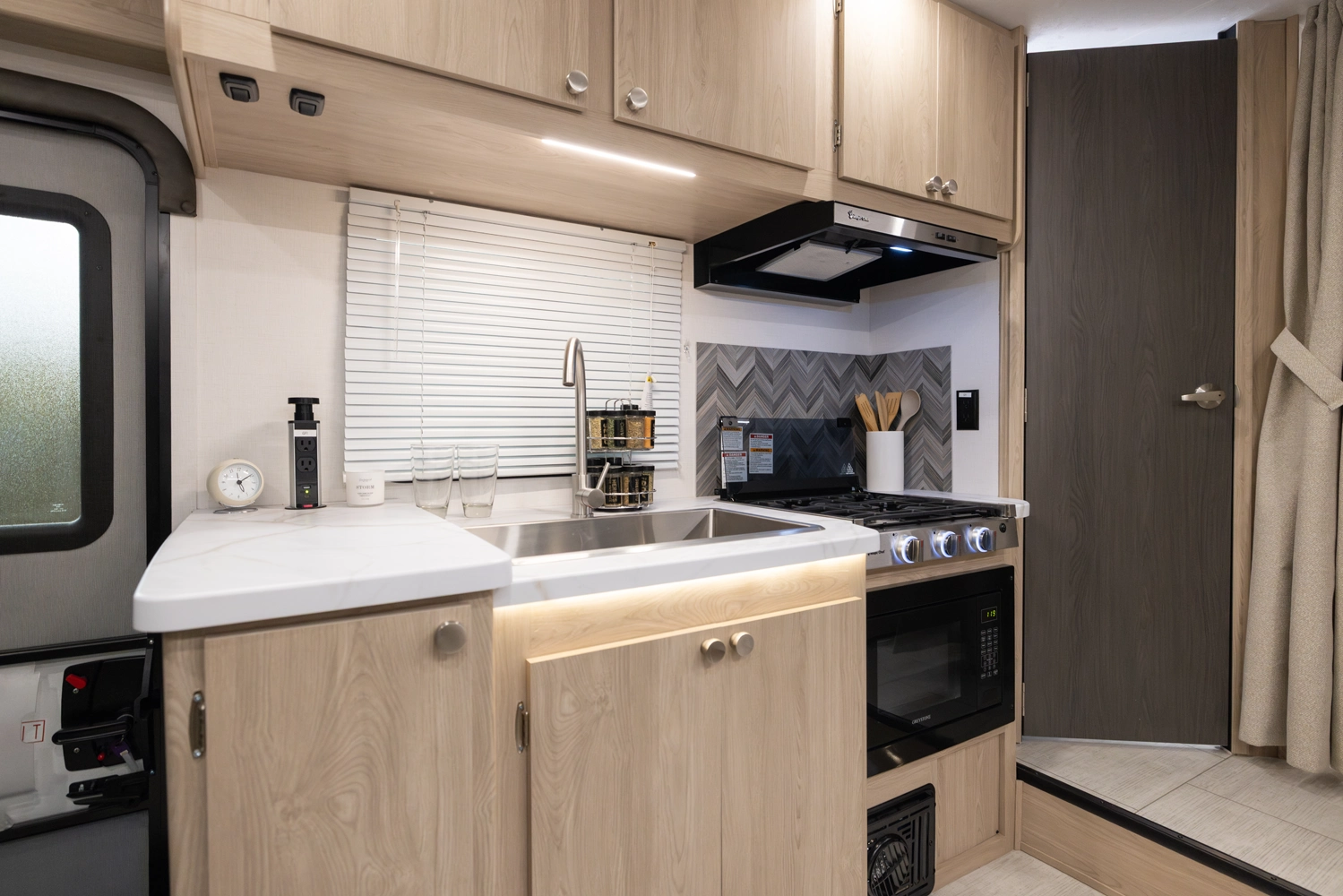

- GALLEY
- GFI Circuit
- Heated Holding Tanks
- Upgraded Running Boards
- Frinton Bisque Wood Grain
- LED Ceiling Lights
- Full Aluminum Framed Walls, Roof, Floor Structures
- SuperSpring Rear Self-Adjusting Helper Spring

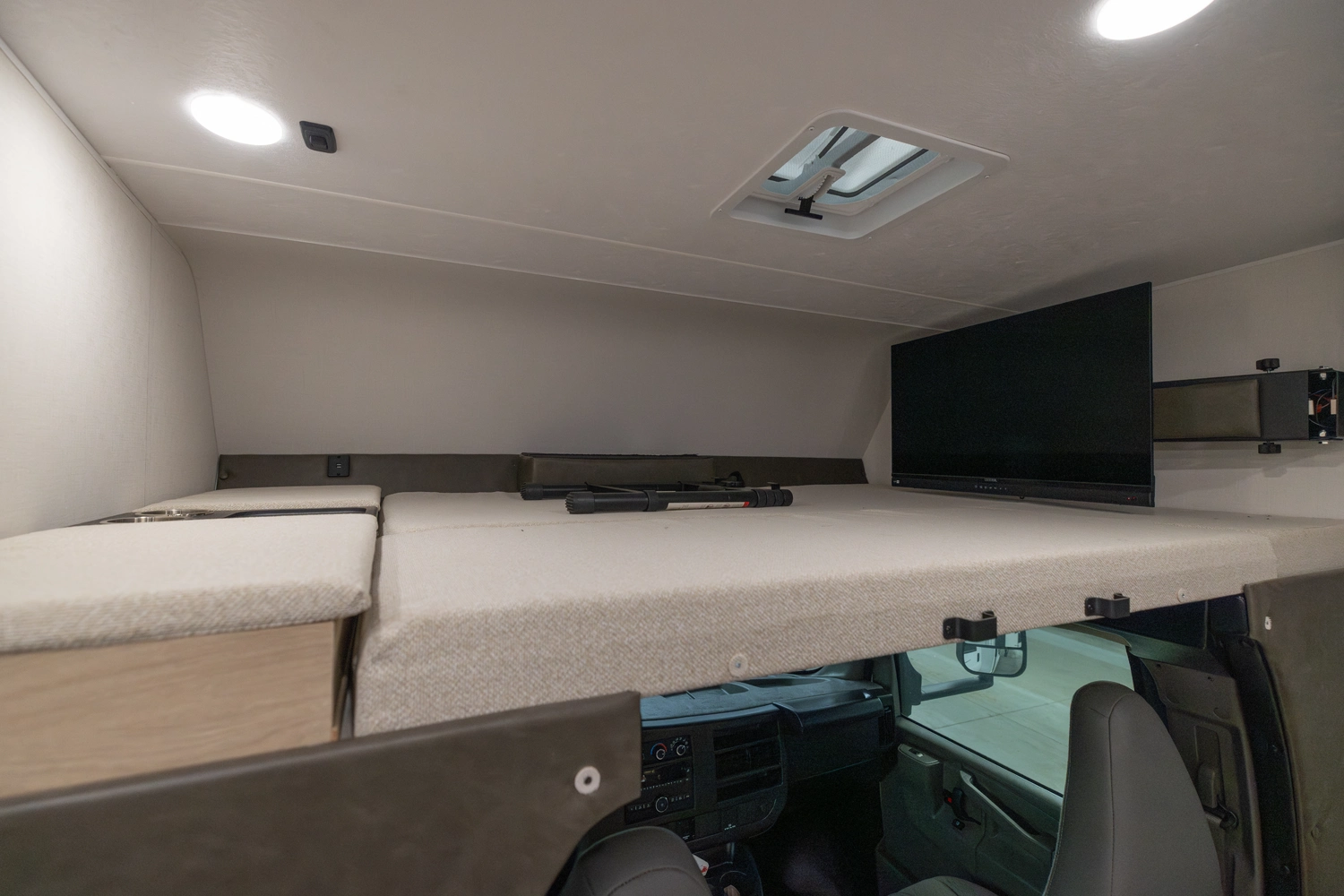

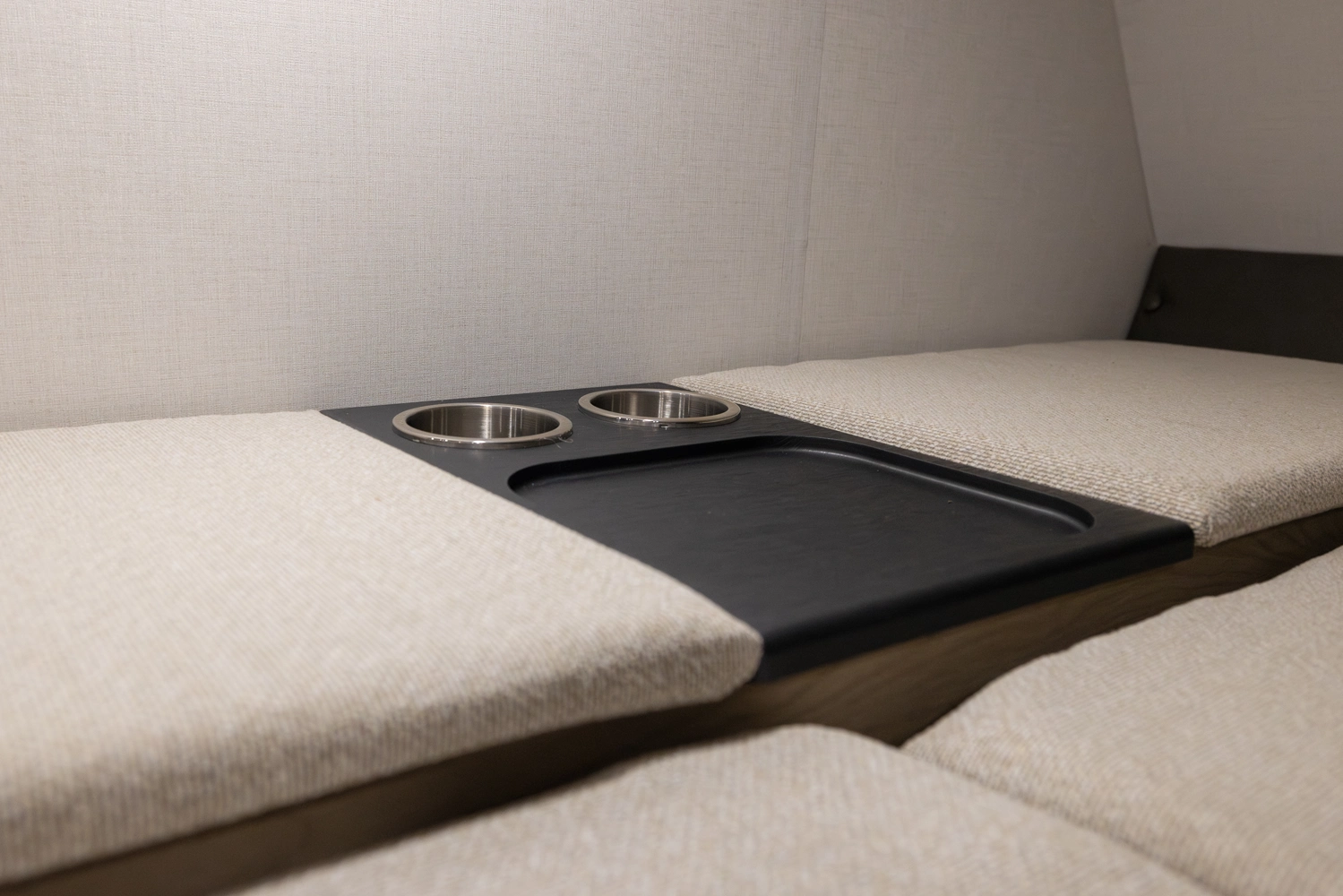

- Large Cab Over Bunk - 57" X 95" with Storage, Cup Holders and USB ports
- Hydraulic Leveling Jacks (Optional) (N/A 220XG)
- 40" Living Room 12V Smart TV
- Convection Oven
- Bed Area with 110V & 12V outlets
- Child Safety Net in Cabover
- 1 Year of RV Roadside & Technical Assistance (Specialized Dispatch Services)
- Heavy Duty Front and Rear Stabilizer Bars
- Hydraulic Leveling Jacks (N/A 220XG)
- Rear Roof Ladder Prep (by Lippert Components)
- Set Up Lights w/ Switch
- Azdel Composite Sidewall and Cabover Construction
- Seamless One-Piece Roof Material
- Kitchen Backsplash
- 1 Year of RV Roadside & Technical Assistance (Specialized Dispatch Services)

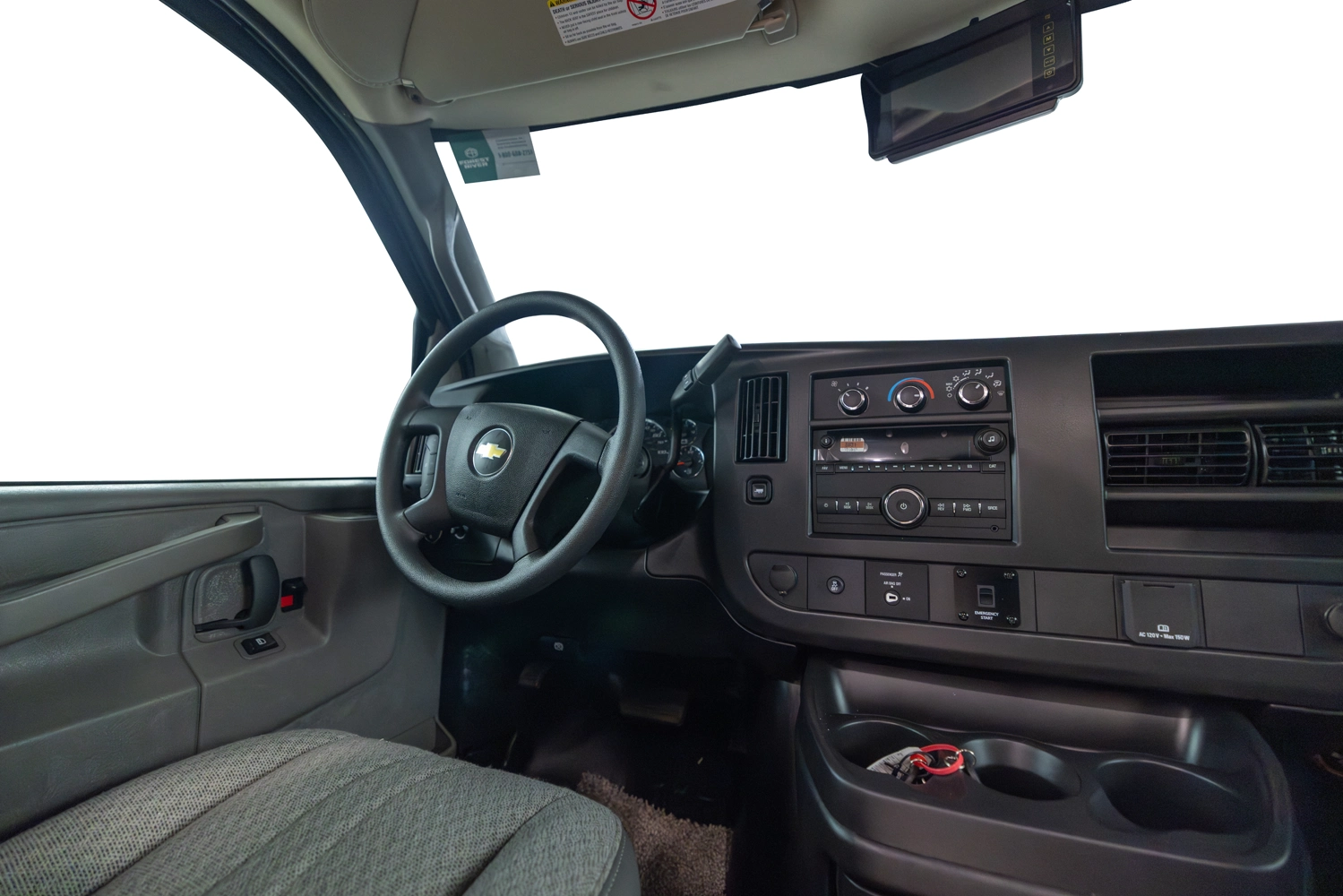

- Touch Screen Radio w/Dash Speakers and CarPlay (Ford only)
- 55 Amp Electronic Converter
- Driver and Passenger Air Bags
- Exterior LED Taillights and Marker Lights
- Soft-Close Roller Bearing Drawer Guides
- Demand Water Pump
- Aluminum Running Boards
- CarPlay/Android Auto Dash Radio (N/A Chevy Chassis)
- 15,000 BTU A/C with Heat Pump
- ELECTRICAL / HEATING
- Molded Fiberglass Front Cap
- INTERIOR & EXTERIOR DÉCOR
- Interior: Magnolia
- Slide Out Awning Topper(s)
- Chassis Electronic Stability Control

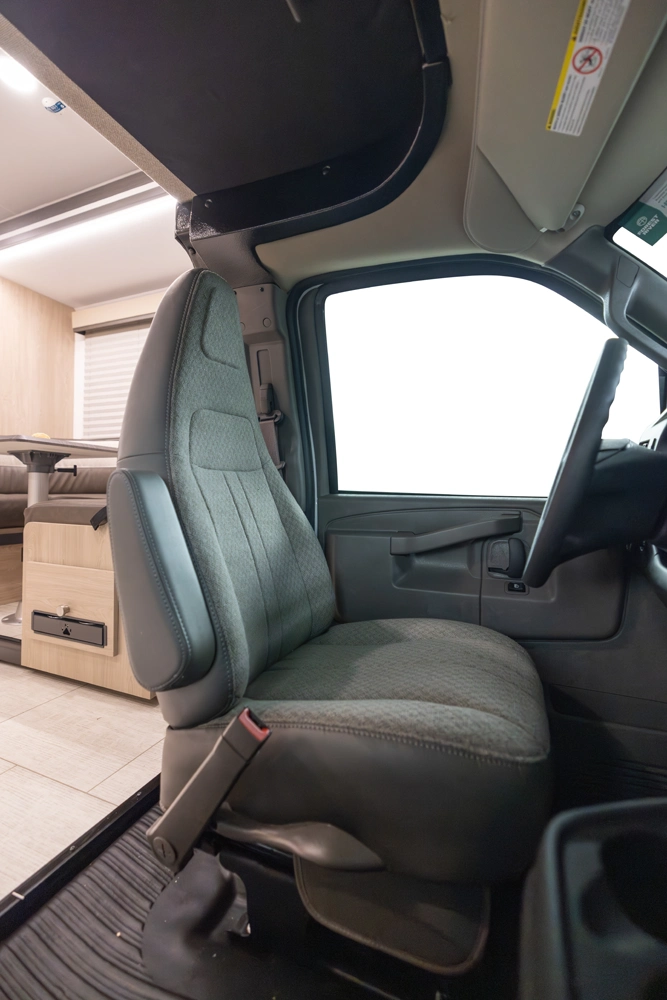

- Driver/Passenger Swivel Seats, Windshield Cover (N/A 270QB)
- Exterior Water Panel w/ Black Tank Flush
- Cab Over and Bedroom Power Vent Fan with Maxxair Cover

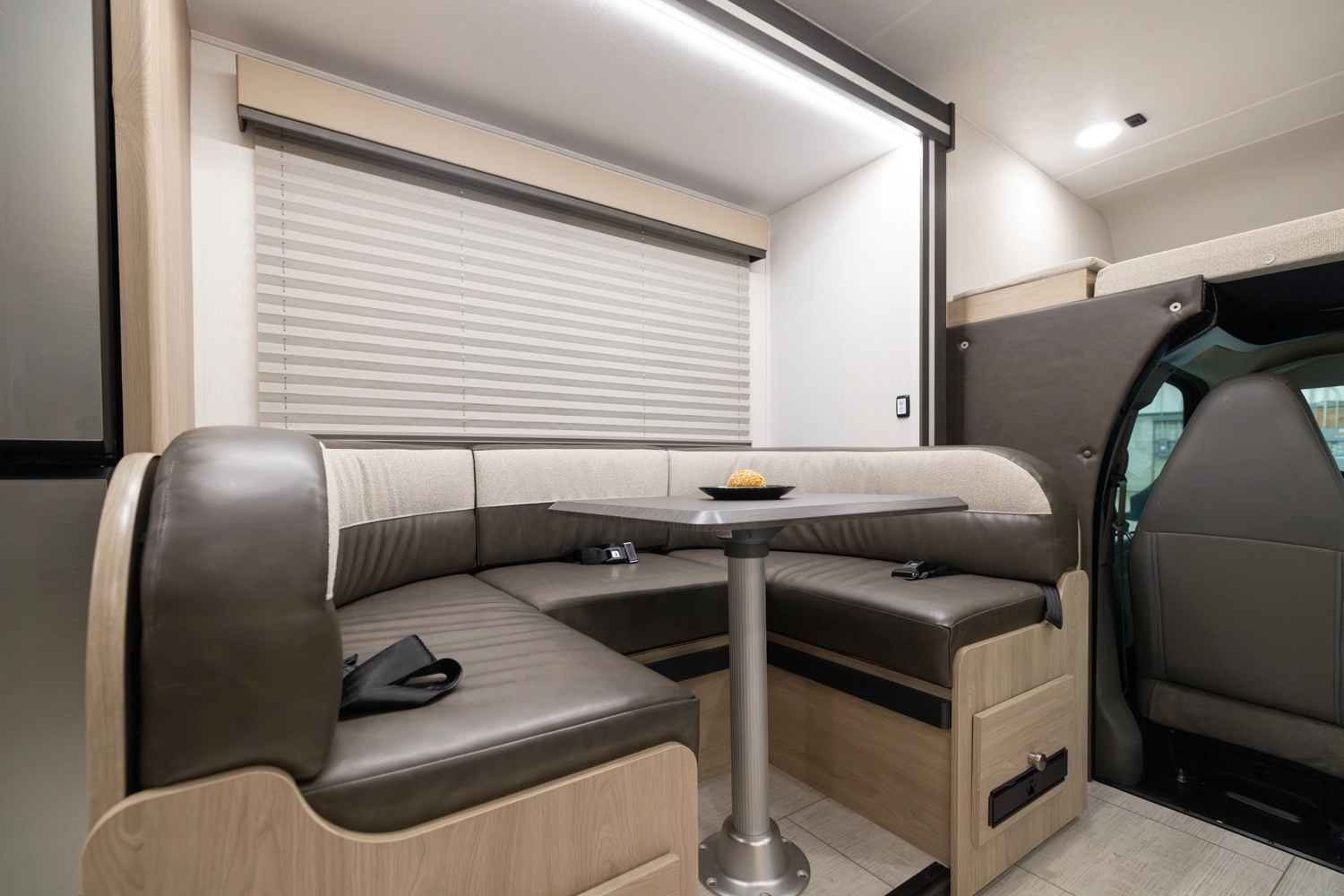

- U-Dinette (230FS, 260MB, 319MB)
- Upgraded Sideview Mirrors
- Roto-cast Rear Warehouse Storage Compartment
- Premium Vinyl Flooring
- Privacy Drape (Lower Cab)
- Propane Furnace
- Power Windows and Locks
- Leatherette Cockpit Seat Covers
- Systems Command Center
- Stainless Steel Wheel Liners
- Pleated Night Shades and Valences
- LP Leak Alarm
- Tankless Water Heater
- Molded Fiberglass Front Cap w/ LED Lighting
- Tankless Water Heater
- High-rise Kitchen Faucet
- Cruise Control
- Dual Batteries
- 5,000 lb. Towing Hitch (Ford E-350)
- Rearview Mirror Backup Monitor
- Cab Over Bunk Ladder
- 7,500 lb. Towing Hitch (Ford E-450, Chevy 3500)
- OPTIONAL EQUIPMENT
- 200W Roof Mounted Solar Panel with 30 Amp Controller and Dual AGM Group 24 Battery
- 57 Gallon Fuel Tank (Chevy)
- Side View Cameras
