Explore 2026 260DS Motorhomes

Home > Leprechaun > 260DS

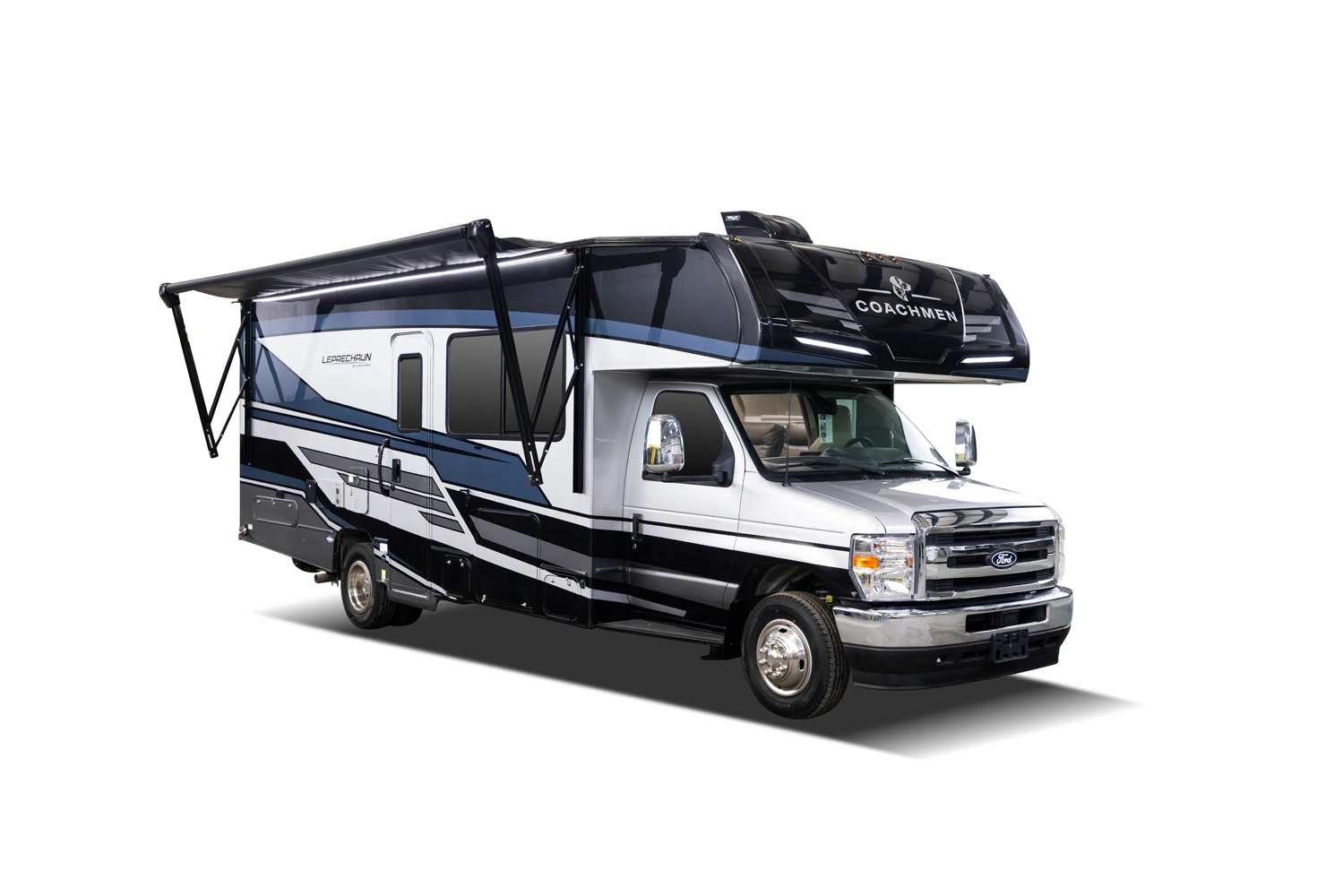

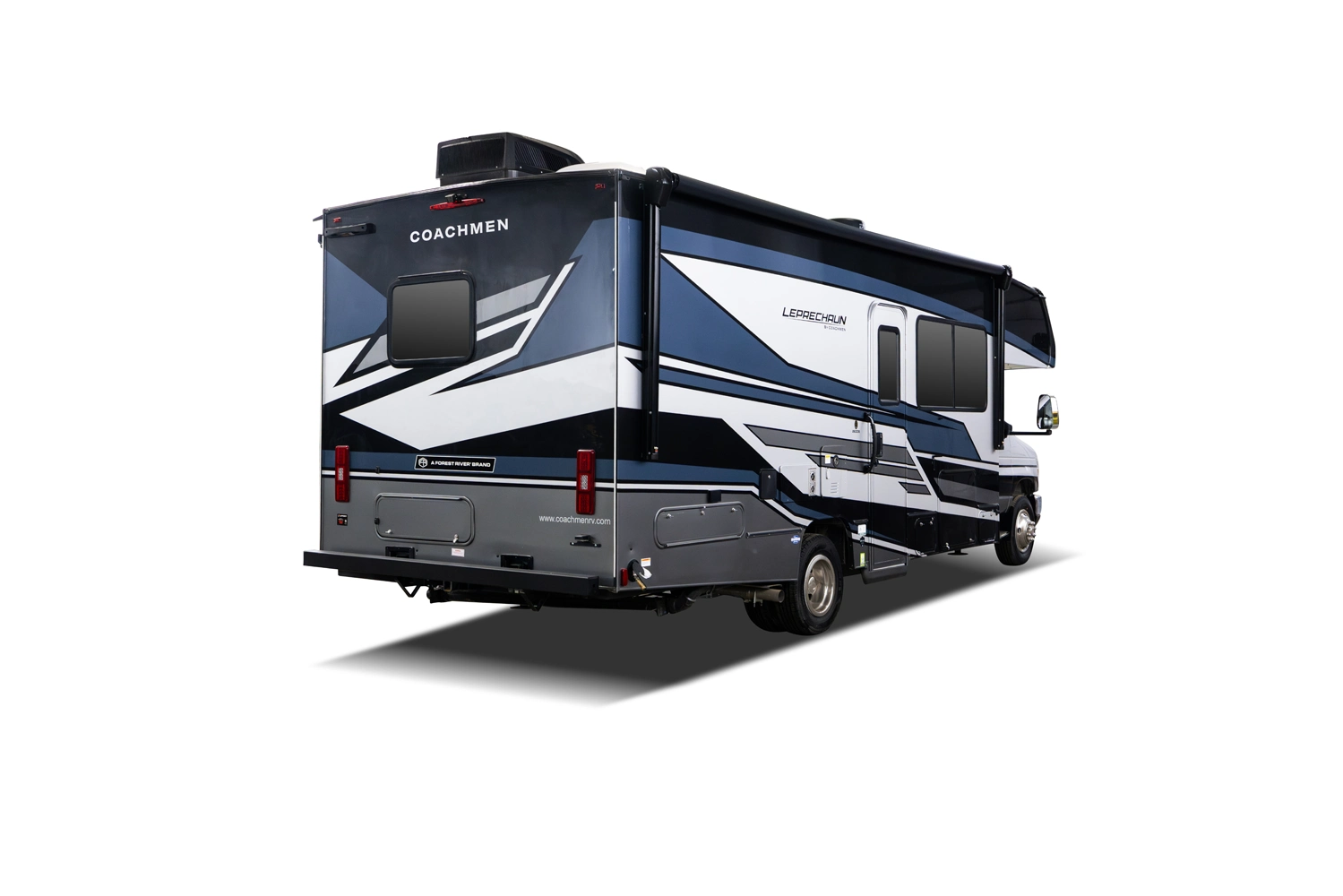

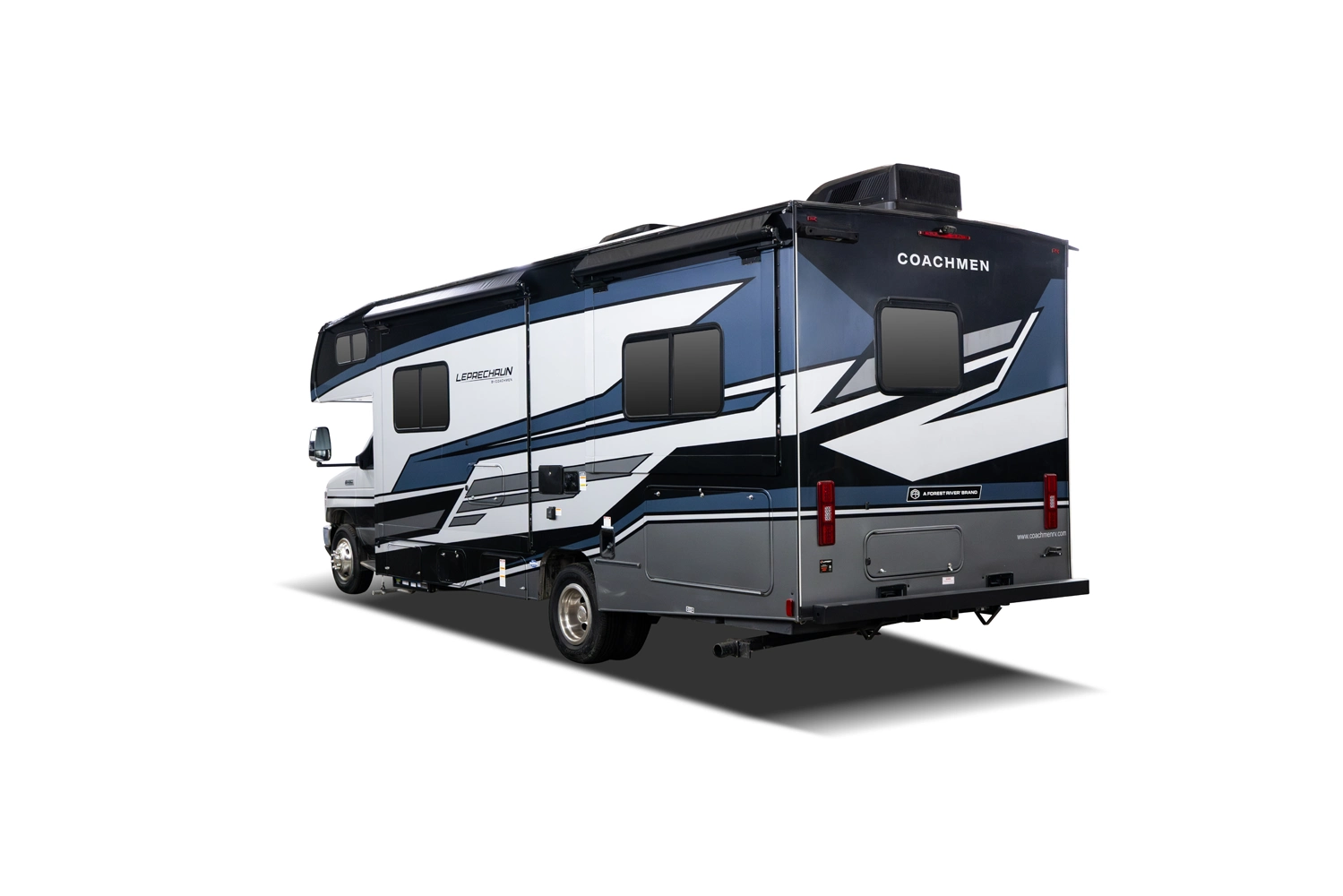

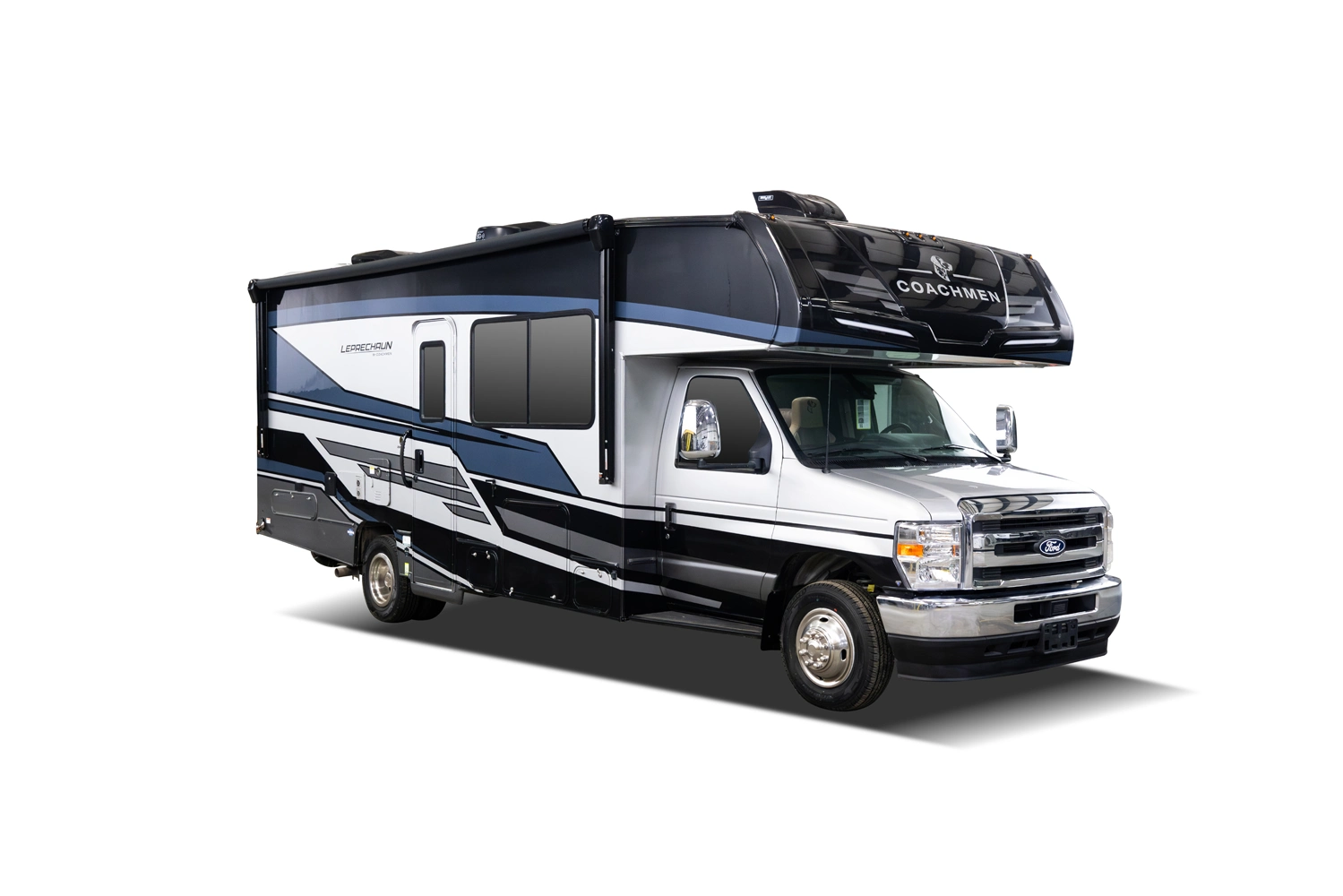

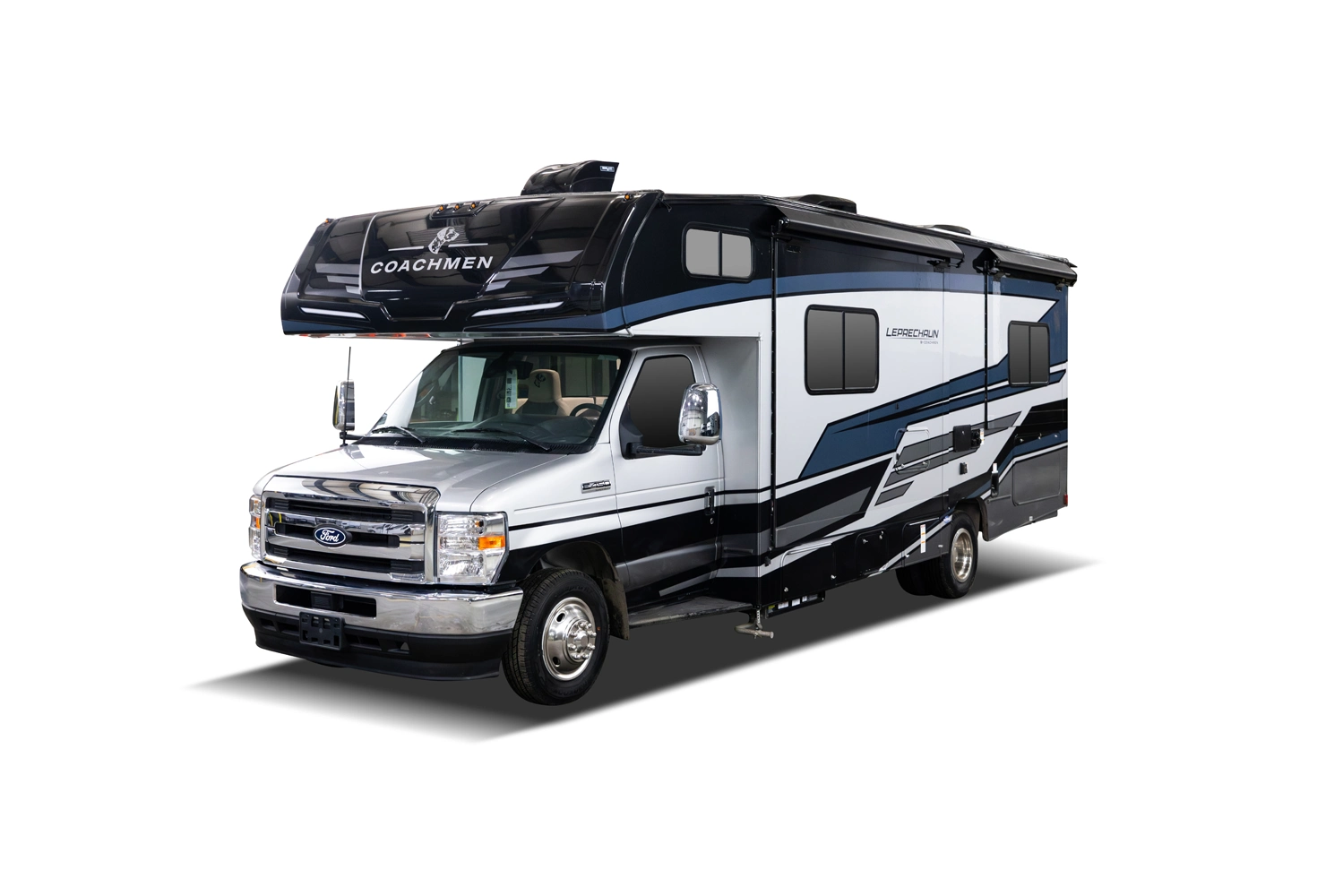

The Leprechaun 260DS floorplan has one entry and two slide outs. Exterior features include: 18' awning and outside entertainment. Interiors features include: rear bedroom and bunk over cab.

Wheelbase: 190"
GVWR: 14,500 lb.
GCWR: 22,000 lb.
GAWR Front: 5,000 lb.
GAWR Rear: 9,600 lb.
Fuel Capacity: 55 gal.
LP Tank Capacity: 86 lb.
Exterior Length: 27' 5"
Exterior Height: 10' 11"
Exterior Width: 100"
Interior Height: 83"
Fresh Water: 50 gal.
Gray Water: 32 gal.
Black Water: 31 gal.
Awning Size: 18'

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

260DS Floorplan Motorhomes Features & Options

- AlphaPly TPO Seamless 1-Piece Roof Material (Lifetime Warranty)
- Max-Length Power Patio Awning with LED Light Strip (15’ through 21’ Lengths)
- On-Demand Tankless Water Heater & AquaView Showermiser
- Solar Power Prep on Roof – (Optional 200W Panel w/ 30-amp Controller)
- 15,000 BTU A/C with Heat Pump (Optional Rear A/C on 260DS, 260MB, 308KB & 319MB)
- Large 57 x 80" Cab-Over Sleeping Area with Cup Holders & Storage (800 lb. Capacity)
- Starlink Prep
- Residential 80" Length Queen & King Size Beds (N/A on 220XG & 260MB Murphy-Beds)
- CRV Super Springs Ride – Self-adjusting Rear Helper Spring (N/A 220XG & 270QB)
- Azdel Composite Sidewall & Cabover Floor Construction
- 10 cu. ft. 12V Refrigerator

- SumoSpring Front Shock Absorbers
- Electric Stabilizer Jacks (Optional) (N/A 220XG)
- HDMI Port for Living Room TV
- Dynamic Balanced Driveshaft System
- Full Body Paint (Optional): Ocean or Murdock
- 5,000 lb. Towing Hitch (Ford E-350)
- Tilt Steering Wheel
- Wall Mounted Thermostat
- 30 Amp Detachable Power Cord (N/A 260MB)
- Vanity Mirror
- Storage Above Entrance Door with HDMI and Charge Station
- EXPLORER PACKAGE (MANDATORY)
- Exterior: Leprechaun Graphics Package
- Exterior LP Quick Connect
- Solar Prep at Roof and Entry Door
- Telescopic Bunk Ladder
- Dash Air Conditioning
- Tinted Radius Slider Windows - Safety Glass
- Roto-Cast Rear Warehouse Storage Compartment
- USB Charging Ports
- Power Patio Awning with LED Light Strip
- Bed Area USB Port
- Rear-View Color Backup Camera Monitor
- 5G/WiFi Booster
- Porcelain Foot Flush Toilet
- 10 cu. ft. 12V Refrigerator
- Power Bath Vent
- Trash Can in Kitchen Base
- Fire Extinguisher
- Even-Cool A/C Ducting System (N/A 220XG, 230FS)
- Steel Entry Stepwell with Auxiliary House Battery Storage
- INTERIOR APPOINTMENTS
- Side View Cameras
- 57 Gallon Fuel Tank (Chevy)
- Folding Queen Bed - 60" X 80" (260DS)
- 7,500 lb. Towing Hitch (Ford E-450, Chevy 3500)
- Low Point Drain and Winterize Valve at Fresh Tank
- Smoke Detector
- Slide Out Awning Toppers
- 24" Bedroom TV (260DS, 319MB)
- ESCALADE PACKAGE (OPTIONAL - N/A CHEVY CHASSIS)
- CRV SUPERSPRINGS RIDE (MANDATORY - N/A 220XG, 270QB)
- Solar Panel Connection Ports at Sidewall and Roof
- Recessed 3-Burner Cooktop w/Cover
- Exterior Camp Table with Grill (260DS)
- Auto Generator Changeover
- Equalizer Stabilizer Jacks (N/A 220XG)
- Upgraded Exterior Safety Grab Handle
- Rear Steel Bumper
- NPS 4500 Generator (N/A 260MB)
- Back-Up Camera
- EXTERIOR EQUIPMENT
- CHASSIS
- Microwave Oven
- Valet Rod in Closest
- Dual A/C - 15,000 BTU Ducted Front with Heat Pump & 11,000 BTU Non-Ducted Rear (N/A 220XG, 230FS, 270QB)
- Power Patio Awning with LED Light Strip
- 55 Gallon Fuel Tank (Ford)
- Single Bowl Lavatory Sink with Single Lever Faucet
- BATH AND WATER
- Cable TV, Portable Satellite Dish Exterior Hookup
- Solid Surface Kitchen Countertops w/ Under Mount Stainless Steel Sink & Covers (260DS, 260MB, 308KB, 300RS, 319MB)
- White Fiberglass Walls with Graphics Package
- Pop Up Kitchen Recept with USB and Wireless Charging
- Exterior Shower
- SLEEPING
- Kitchen Faucet with Spray Head
- Heated Mirrors
- LP Quick Connect
- Premium Shower Head and Faucet
- Black Tank Flush
- Auto Gen Start
- Winegard Air 360+ TV/FM/AM Antenna
- Vacu-bond Laminated Walls, Roof, and Floor
- Bedroom TV Prep
- Single Child Tether at Forward Facing Dinette
- Driver and Passenger Air Bags
- 55 Amp Electronic Converter
- Touch Screen Radio w/Dash Speakers and CarPlay (Ford only)
- 1 Year of RV Roadside & Technical Assistance (Specialized Dispatch Services)
- Kitchen Backsplash
- Seamless One-Piece Roof Material
- Azdel Composite Sidewall and Cabover Construction
- Set Up Lights w/ Switch
- Rear Roof Ladder Prep (by Lippert Components)
- Hydraulic Leveling Jacks (N/A 220XG)
- Heavy Duty Front and Rear Stabilizer Bars
- 1 Year of RV Roadside & Technical Assistance (Specialized Dispatch Services)
- Child Safety Net in Cabover
- Bed Area with 110V & 12V outlets
- Top Mount Stainless Steel Single Bowl Kitchen Sink (260DS)
- Convection Oven
- 40" Living Room 12V Smart TV
- Hydraulic Leveling Jacks (Optional) (N/A 220XG)
- Large Cab Over Bunk - 57" X 95" with Storage, Cup Holders and USB ports
- SuperSpring Rear Self-Adjusting Helper Spring
- Full Aluminum Framed Walls, Roof, Floor Structures
- LED Ceiling Lights
- Frinton Bisque Wood Grain
- Upgraded Running Boards
- Heated Holding Tanks
- GFI Circuit
- GALLEY
- 10 cu. ft. 12V Glass Door Refrigerator
- Exterior Shower
- Roll-Away Shower Door
- Power, Lighted Range Hood
- Interior Safety Grab Handle at Entrance Door
- Starlink Prep
- 40" 12V Coach Smart TV
- Carbon Monoxide Detector
- J-Dinette with Pullout (220XG, 260DS, 308KB)
- Premium One-Piece Thermofoil Countertops
- Auxiliary House Battery
- Skylight Over Shower
- 15,000 BTU Non-Ducted Roof A/C with Heat Pump (220XG, 230FS)
- GM Factory Dash Radio w/Dash Speakers (Chevy only)
- INTERIOR EQUIPMENT
- Jackknife Sofa (270QB, 260DS, 308KB, 300RS, 319MB)
- 200W Roof Mounted Solar Panel with 30 Amp Controller and Dual AGM Group 24 Battery
- OPTIONAL EQUIPMENT
- 7,500 lb. Towing Hitch (Ford E-450, Chevy 3500)
- Cab Over Bunk Ladder
- Rearview Mirror Backup Monitor
- 5,000 lb. Towing Hitch (Ford E-350)
- Dual Batteries
- Cruise Control
- High-rise Kitchen Faucet
- Exterior Entertainment Center w/ 32" 12V TV & Bluetooth Soundbar (260DS, 260MB, 308KB, 300RS, 319MB)
- Tankless Water Heater
- Molded Fiberglass Front Cap w/ LED Lighting
- Tankless Water Heater
- Countertop Extension (260DS, 260MB, 308KB)
- LP Leak Alarm
- Pleated Night Shades and Valences
- Stainless Steel Wheel Liners
- Systems Command Center
- Leatherette Cockpit Seat Covers
- Power Windows and Locks
- Propane Furnace
- Privacy Drape (Lower Cab)
- Premium Vinyl Flooring
- Roto-cast Rear Warehouse Storage Compartment
- Upgraded Sideview Mirrors
- Cab Over and Bedroom Power Vent Fan with Maxxair Cover
- Exterior Water Panel w/ Black Tank Flush
- Driver/Passenger Swivel Seats, Windshield Cover (N/A 270QB)
- Chassis Electronic Stability Control
- Slide Out Awning Topper(s)
- Interior: Magnolia
- INTERIOR & EXTERIOR DÉCOR
- Dual Power Recliners (260DS, 308KB, 300RS, 319MB)
- Molded Fiberglass Front Cap
- ELECTRICAL / HEATING
- 15,000 BTU A/C with Heat Pump
- CarPlay/Android Auto Dash Radio (N/A Chevy Chassis)
- Aluminum Running Boards
- Exterior Entertainment TV Ready Compartment (260DS, 260MB, 308KB, 300RS, 319MB)
- Demand Water Pump
- Soft-Close Roller Bearing Drawer Guides
- Exterior LED Taillights and Marker Lights
