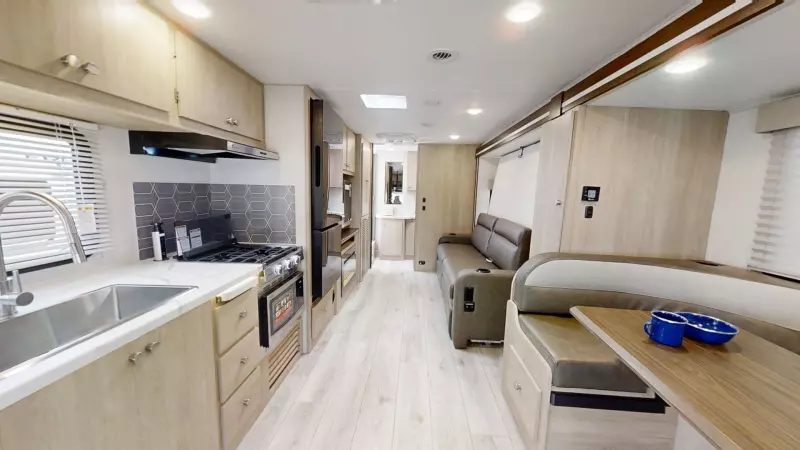

The Leprechaun 260MB floorplan has one entry and one slide out. Exterior features include: 19' awning, outside entertainment and outside kitchen. Interiors features include: murphy bed, rear bathroom, bunk over cab, u-dinette and LATCH system.

Wheelbase: 190"
GVWR: 14,500 lb.
GCWR: 22,000 lb.
GAWR Front: 5,000 lb.
GAWR Rear: 9,600 lb.
Fuel Capacity: 55 gal.
LP Tank Capacity: 86 lb.
Exterior Length: 28' 6"
Exterior Height: 10' 11"
Exterior Width: 100"
Interior Height: 78"
Fresh Water: 49 gal.
Gray Water: 32 gal.
Black Water: 32 gal.
Awning Size: 19'

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Explore 3D Space

260MB Floorplan Motorhomes Features & Options

- Solar Power Prep on Roof – (Optional 200W Panel w/ 30-amp Controller)
- On-Demand Tankless Water Heater & AquaView Showermiser
- AlphaPly TPO Seamless 1-Piece Roof Material (Lifetime Warranty)
- Max-Length Power Patio Awning with LED Light Strip (15’ through 21’ Lengths)
- 10 cu. ft. 12V Refrigerator
- Starlink Prep
- CRV Super Springs Ride – Self-adjusting Rear Helper Spring (N/A 220XG & 270QB)
- 15,000 BTU A/C with Heat Pump (Optional Rear A/C on 260DS, 260MB, 308KB & 319MB)

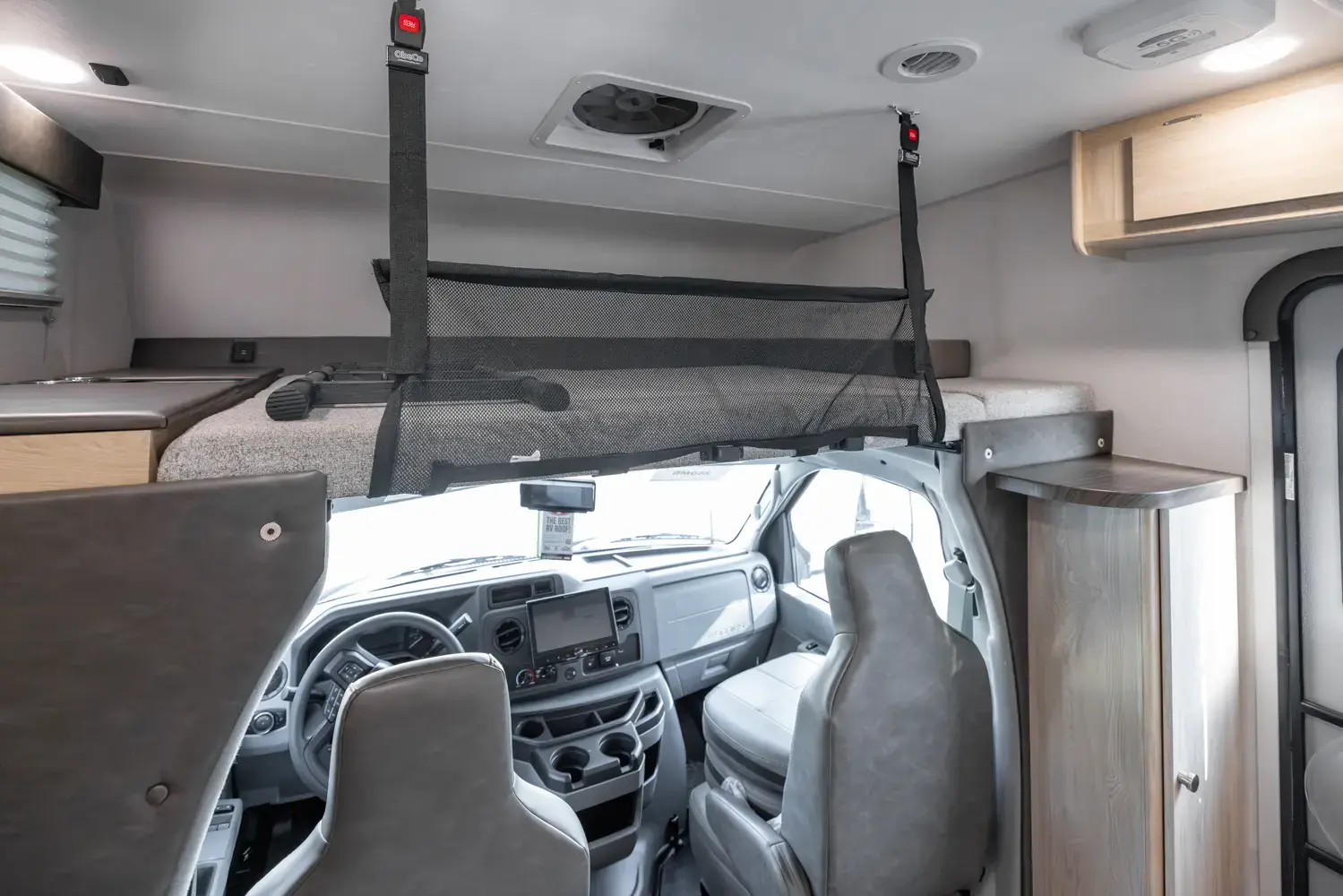

- Large 57 x 80" Cab-Over Sleeping Area with Cup Holders & Storage (800 lb. Capacity)
- Azdel Composite Sidewall & Cabover Floor Construction

- SumoSpring Front Shock Absorbers
- Black Tank Flush
- Auto Gen Start
- Winegard Air 360+ TV/FM/AM Antenna
- Kitchen Faucet with Spray Head
- Dynamic Balanced Driveshaft System
- Full Body Paint (Optional): Ocean or Murdock
- HDMI Port for Living Room TV
- EXPLORER PACKAGE (MANDATORY)
- Exterior: Leprechaun Graphics Package
- Tilt Steering Wheel
- Exterior LP Quick Connect
- Solar Prep at Roof and Entry Door
- Wall Mounted Thermostat
- Telescopic Bunk Ladder
- Vanity Mirror
- Storage Above Entrance Door with HDMI and Charge Station
- Dash Air Conditioning
- Tinted Radius Slider Windows - Safety Glass
- Power Patio Awning with LED Light Strip
- Roto-Cast Rear Warehouse Storage Compartment
- Bed Area USB Port
- USB Charging Ports
- Rear-View Color Backup Camera Monitor
- Power Bath Vent
- Top Mount Stainless Steel Farmers Kitchen Sink (N/A 260DS)
- Fire Extinguisher
- 5G/WiFi Booster
- Even-Cool A/C Ducting System (N/A 220XG, 230FS)
- Steel Entry Stepwell with Auxiliary House Battery Storage
- Porcelain Foot Flush Toilet
- INTERIOR APPOINTMENTS

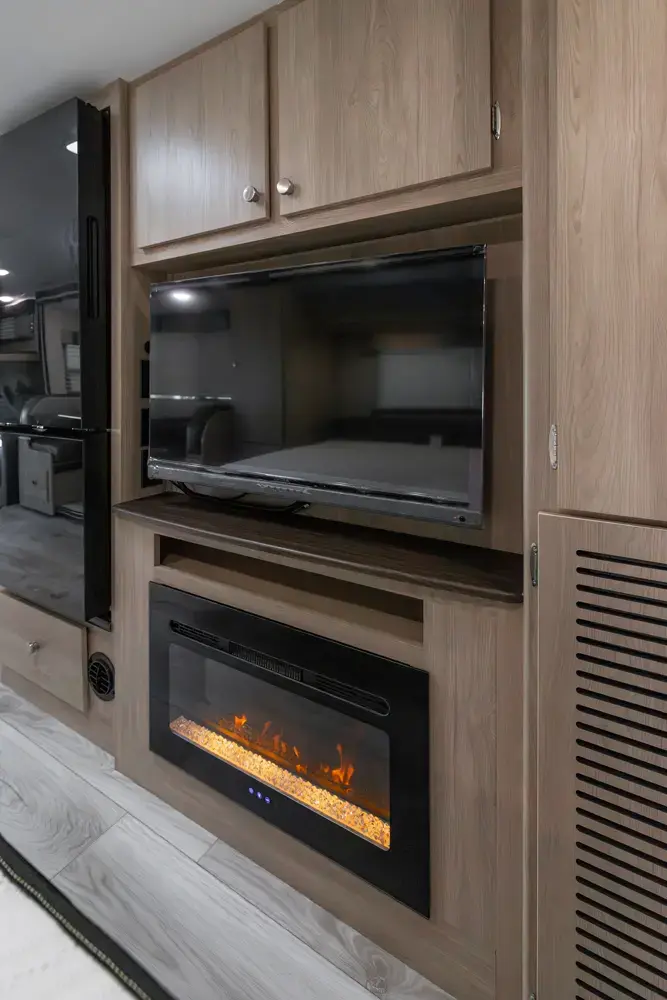

- Electric Fireplace (260MB, 319MB)
- Side View Cameras
- Single Child Tether at Forward Facing Dinette
- Bedroom TV Prep
- Premium Shower Head and Faucet
- Pop Up Kitchen Recept with USB and Wireless Charging
- Vacu-bond Laminated Walls, Roof, and Floor
- LP Quick Connect
- Heated Mirrors
- Microwave Oven
- SLEEPING
- White Fiberglass Walls with Graphics Package
- Exterior Shower
- Solid Surface Kitchen Countertops w/ Under Mount Stainless Steel Sink & Covers (260DS, 260MB, 308KB, 300RS, 319MB)
- Cable TV, Portable Satellite Dish Exterior Hookup
- Kitchen Backsplash
- BATH AND WATER
- Single Bowl Lavatory Sink with Single Lever Faucet
- 55 Gallon Fuel Tank (Ford)
- Power Patio Awning with LED Light Strip
- Dual A/C - 15,000 BTU Ducted Front with Heat Pump & 11,000 BTU Non-Ducted Rear (N/A 220XG, 230FS, 270QB)
- Valet Rod in Closest
- CHASSIS
- Rear Steel Bumper
- Upgraded Exterior Safety Grab Handle
- Equalizer Stabilizer Jacks (N/A 220XG)
- High-rise Kitchen Faucet

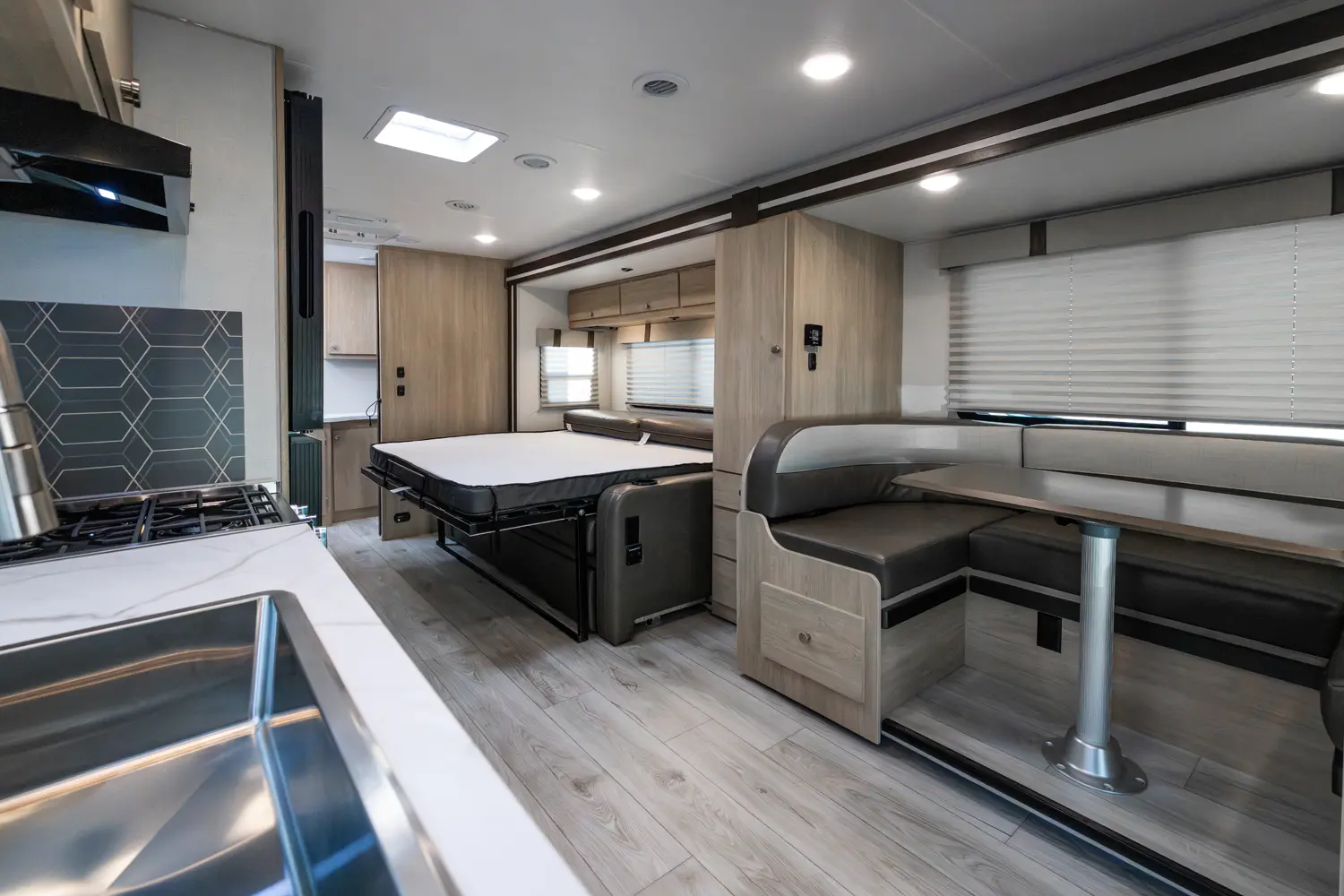

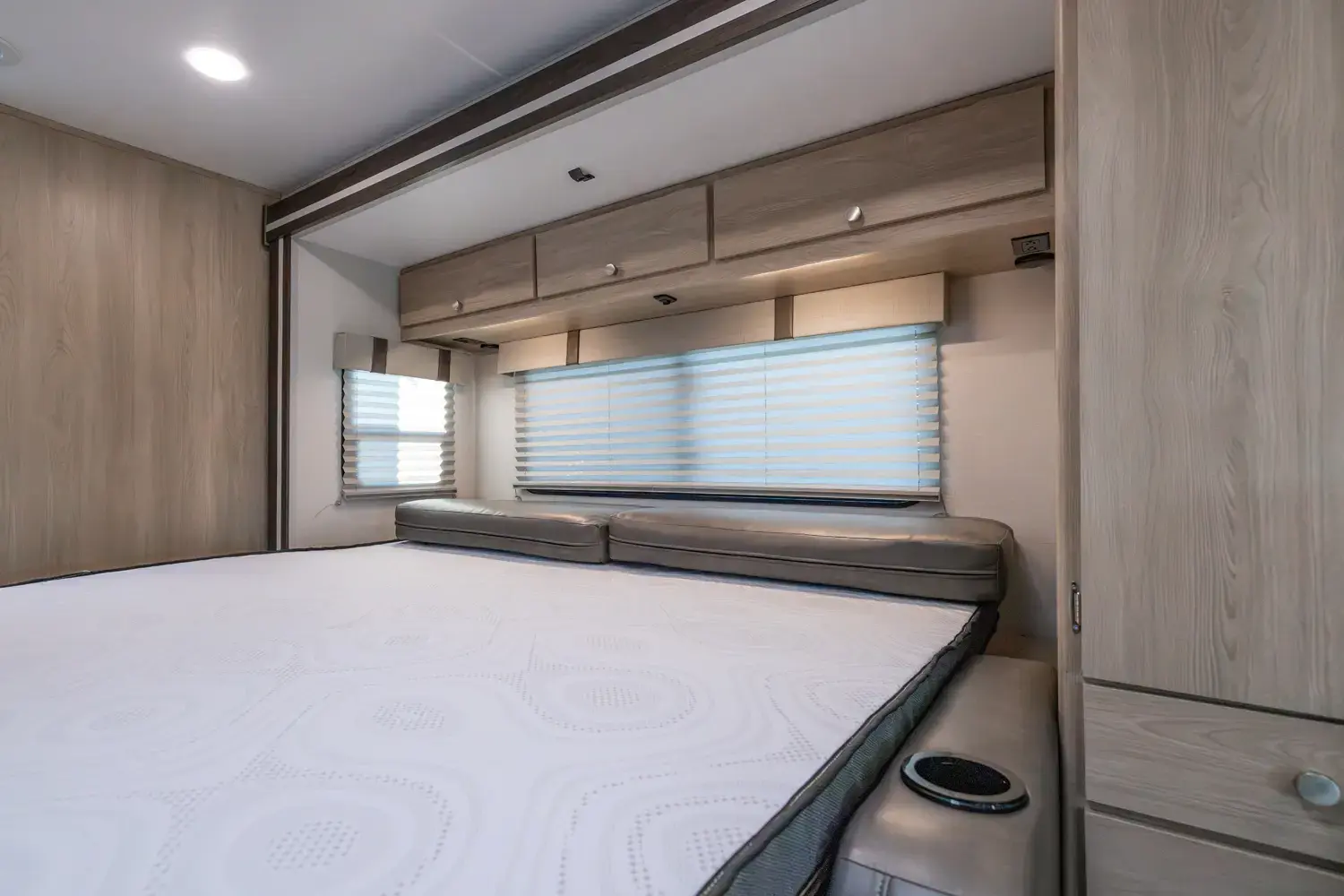

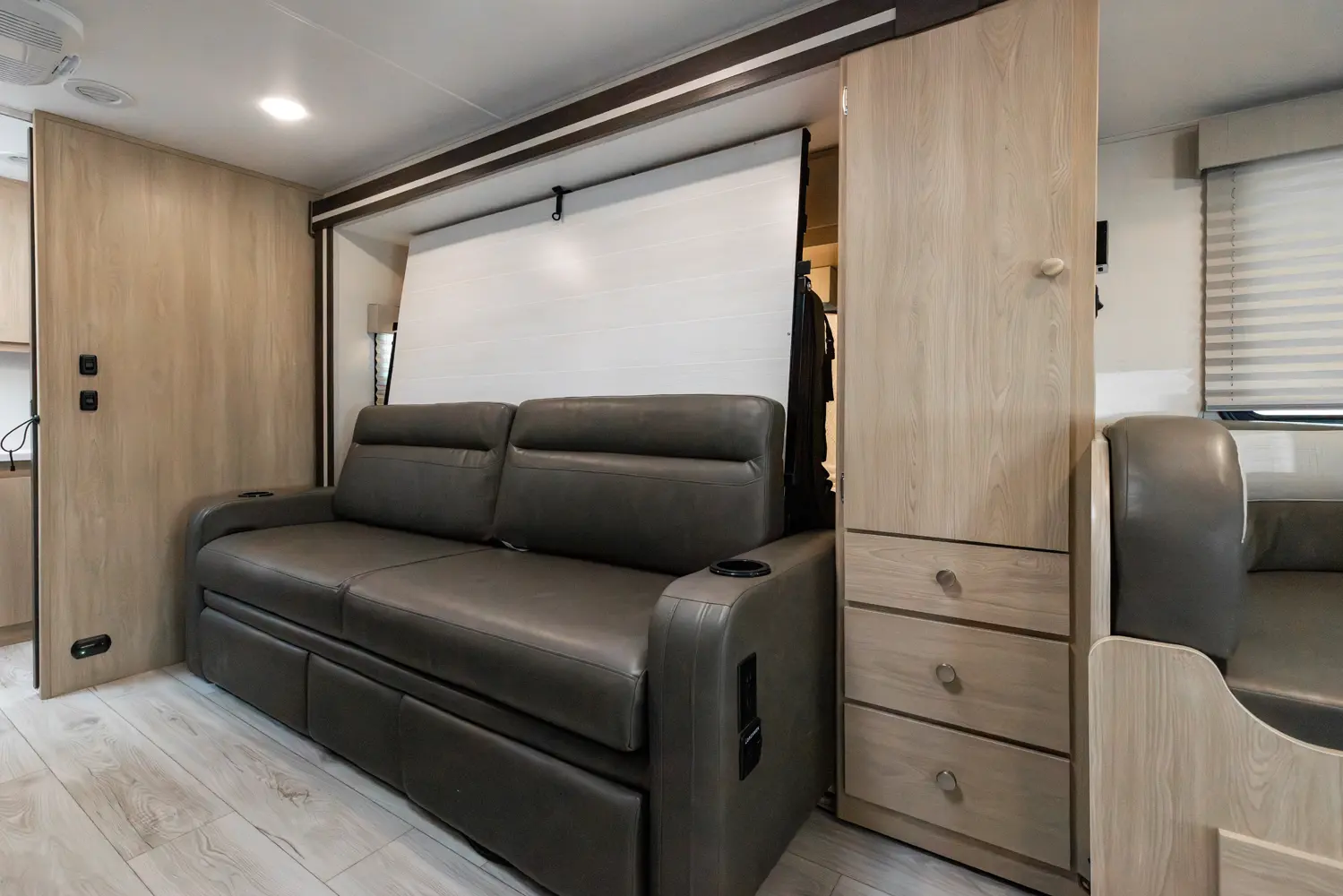

- King Murphy Bed - 72" X 72" (260MB)
- Auto Generator Changeover
- EXTERIOR EQUIPMENT
- Back-Up Camera
- Coach Décor Wall Mirror (260MB, 319MB, 300RS)
- 10 cu. ft. 12V Refrigerator
- Slide Out Awning Toppers
- Solar Panel Connection Ports at Sidewall and Roof
- CRV SUPERSPRINGS RIDE (MANDATORY - N/A 220XG, 270QB)
- ESCALADE PACKAGE (OPTIONAL - N/A CHEVY CHASSIS)
- Premium One-Piece Thermofoil Countertops
- Smoke Detector
- Low Point Drain and Winterize Valve at Fresh Tank
- 7,500 lb. Towing Hitch (Ford E-450, Chevy 3500)
- NPS 6000 Generator (260MB)
- Demand Water Pump
- Soft-Close Roller Bearing Drawer Guides
- Seamless One-Piece Roof Material
- Azdel Composite Sidewall and Cabover Construction
- Driver and Passenger Air Bags
- Set Up Lights w/ Switch
- 55 Amp Electronic Converter
- Power, Lighted Range Hood
- Touch Screen Radio w/Dash Speakers and CarPlay (Ford only)
- 1 Year of RV Roadside & Technical Assistance (Specialized Dispatch Services)
- Rear Roof Ladder Prep (by Lippert Components)
- Hydraulic Leveling Jacks (N/A 220XG)
- Heavy Duty Front and Rear Stabilizer Bars
- 1 Year of RV Roadside & Technical Assistance (Specialized Dispatch Services)
- Hydraulic Leveling Jacks (Optional) (N/A 220XG)

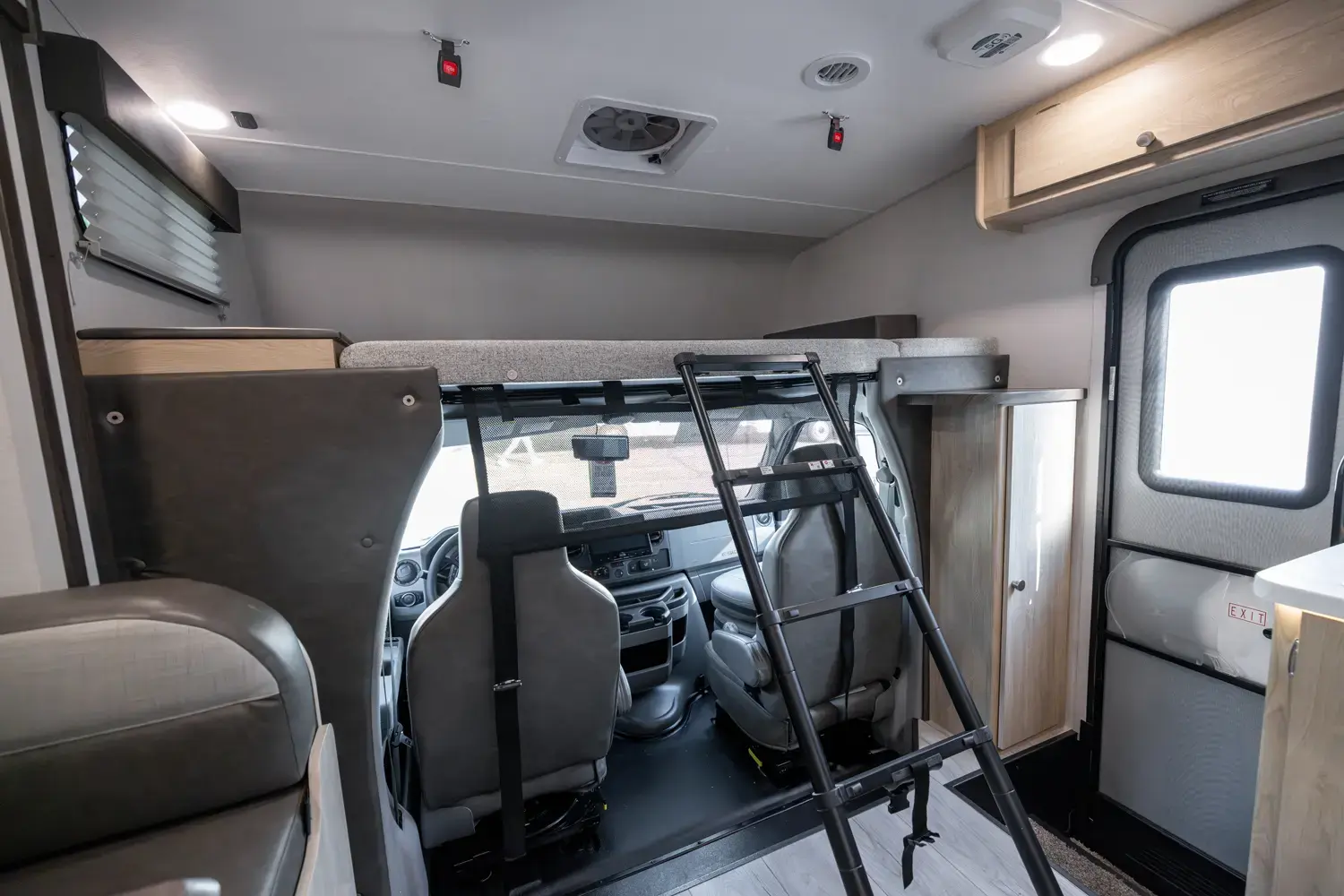

- Large Cab Over Bunk - 57" X 95" with Storage, Cup Holders and USB ports
- Countertop Extension (260DS, 260MB, 308KB)
- Child Safety Net in Cabover
- SuperSpring Rear Self-Adjusting Helper Spring
- Full Aluminum Framed Walls, Roof, Floor Structures
- Bed Area with 110V & 12V outlets
- LED Ceiling Lights
- Exterior Shower
- Roll-Away Shower Door
- Interior Safety Grab Handle at Entrance Door
- Frinton Bisque Wood Grain
- Upgraded Running Boards
- Heated Holding Tanks
- Starlink Prep
- GFI Circuit

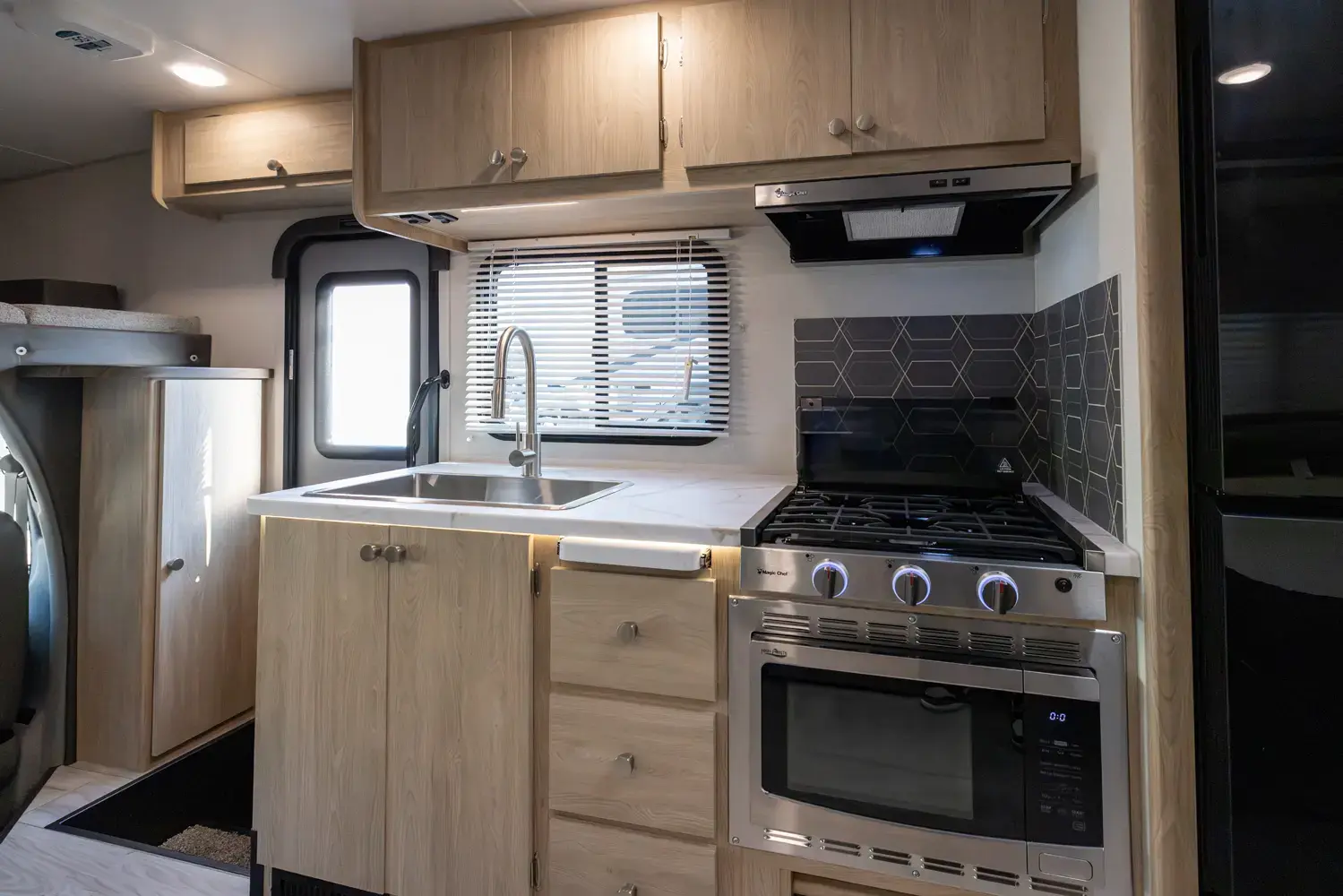

- Recessed 3-Burner Cooktop w/Cover
- GALLEY
- Convection Oven
- Auxiliary House Battery

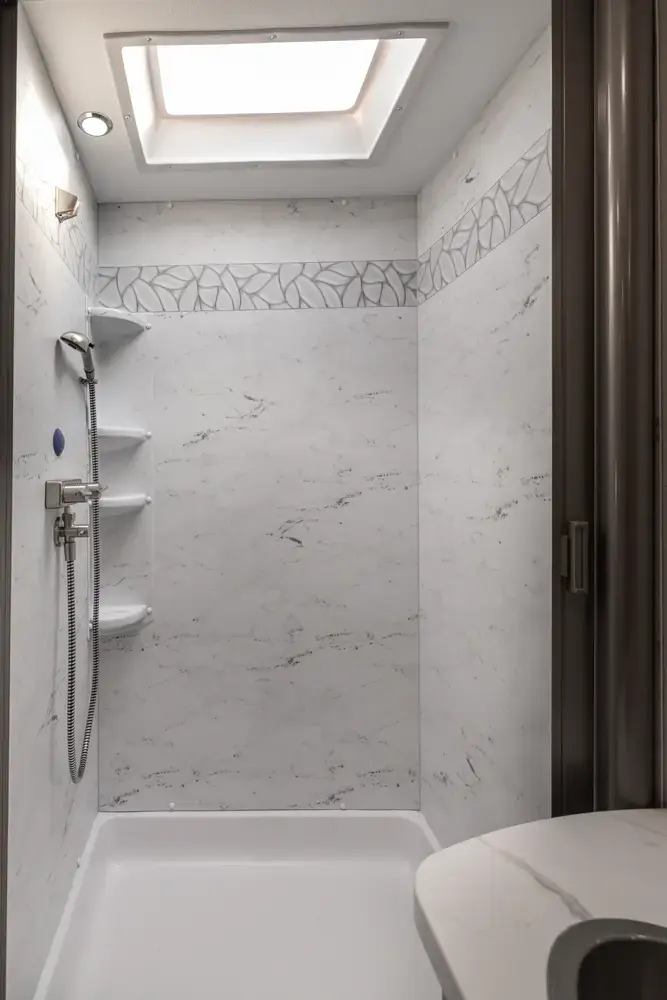

- Skylight Over Shower
- Trash Can in Kitchen Base
- 40" 12V Coach Smart TV
- Carbon Monoxide Detector
- 15,000 BTU Non-Ducted Roof A/C with Heat Pump (220XG, 230FS)
- INTERIOR EQUIPMENT
- Cab Over Bunk Ladder
- Rearview Mirror Backup Monitor
- 50-amp Detachable Power Cord (260MB)
- 200W Roof Mounted Solar Panel with 30 Amp Controller and Dual AGM Group 24 Battery
- OPTIONAL EQUIPMENT
- Dual Batteries
- 7,500 lb. Towing Hitch (Ford E-450, Chevy 3500)
- Cruise Control
- Exterior Entertainment Center w/ 32" 12V TV & Bluetooth Soundbar (260DS, 260MB, 308KB, 300RS, 319MB)
- Tankless Water Heater

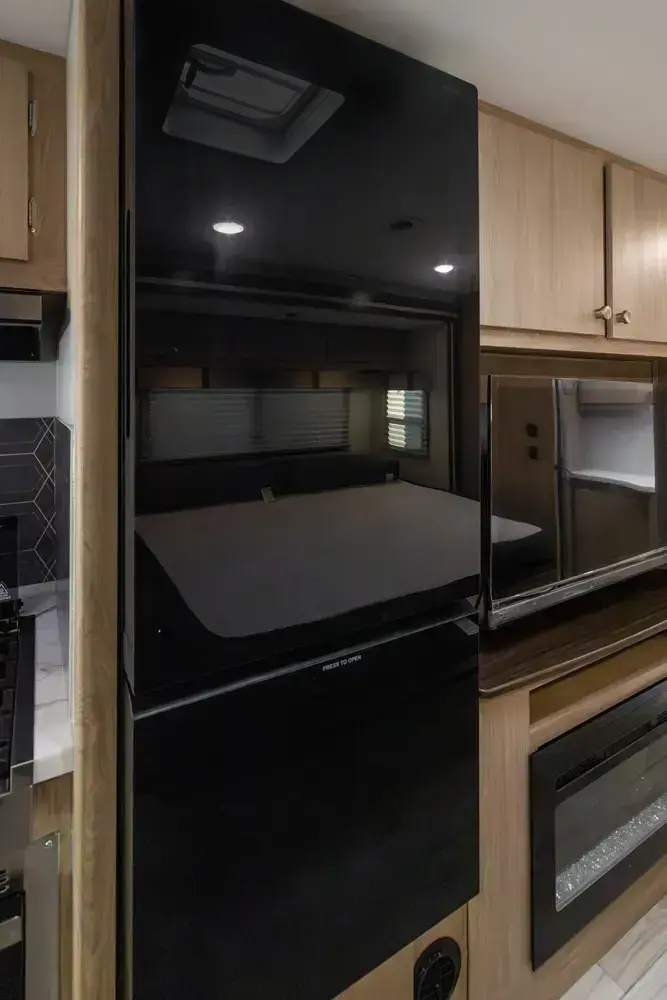

- 10 cu. ft. 12V Glass Door Refrigerator
- Molded Fiberglass Front Cap w/ LED Lighting
- Tankless Water Heater
- LP Leak Alarm
- 40" Living Room 12V Smart TV
- Pleated Night Shades and Valences
- Leatherette Cockpit Seat Covers
- Stainless Steel Wheel Liners
- Power Windows and Locks
- Systems Command Center
- Propane Furnace
- Privacy Drape (Lower Cab)
- Premium Vinyl Flooring
- Washer/Dryer Combo (260MB, 308KB)
- Roto-cast Rear Warehouse Storage Compartment
- Upgraded Sideview Mirrors

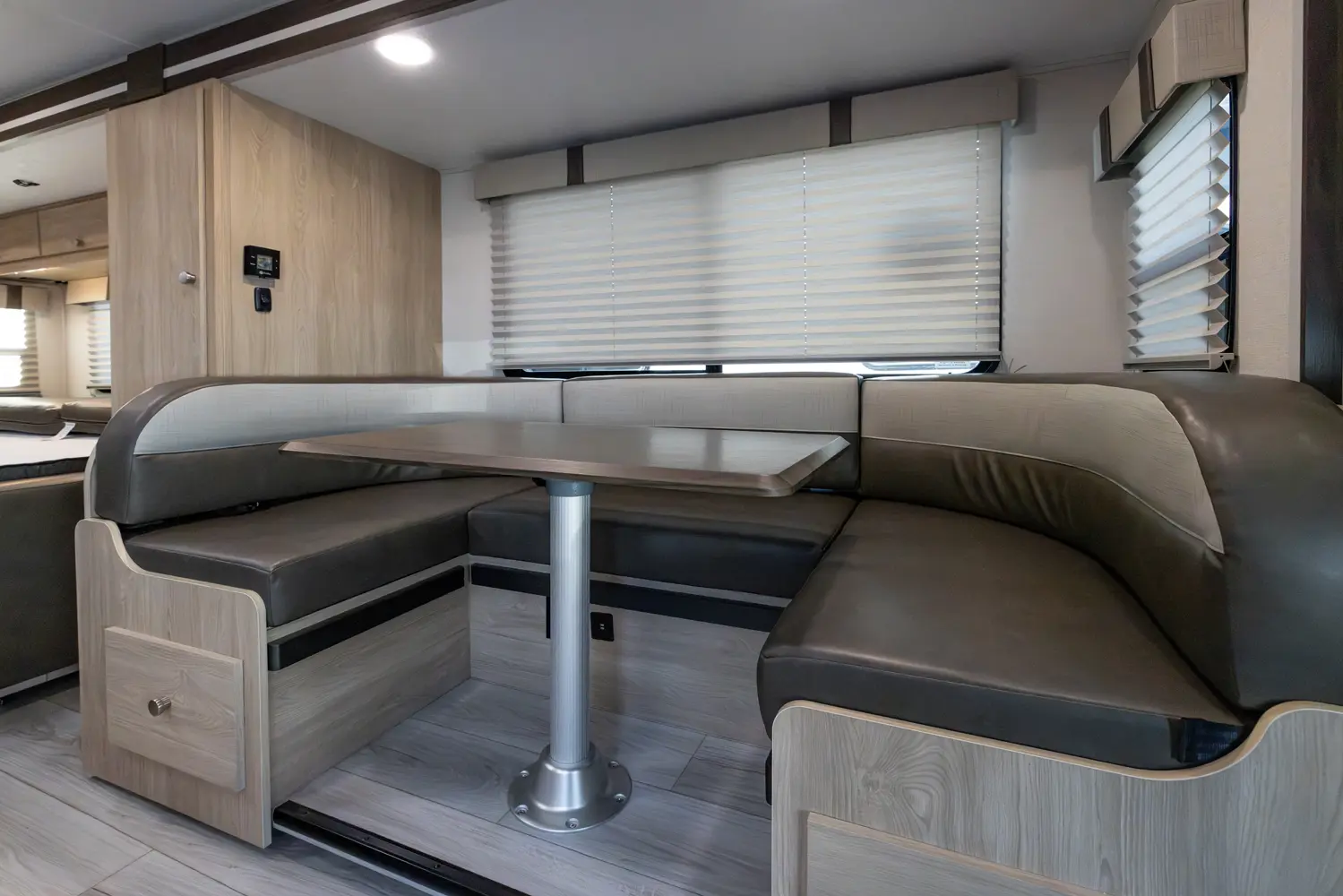

- U-Dinette (230FS, 260MB, 319MB)
- Cab Over and Bedroom Power Vent Fan with Maxxair Cover
- Molded Fiberglass Front Cap
- ELECTRICAL / HEATING
- Exterior Water Panel w/ Black Tank Flush
- Driver/Passenger Swivel Seats, Windshield Cover (N/A 270QB)
- Chassis Electronic Stability Control
- 15,000 BTU A/C with Heat Pump
- CarPlay/Android Auto Dash Radio (N/A Chevy Chassis)
- Slide Out Awning Topper(s)
- Interior: Magnolia
- INTERIOR & EXTERIOR DÉCOR
- Aluminum Running Boards
- Exterior Entertainment TV Ready Compartment (260DS, 260MB, 308KB, 300RS, 319MB)
- Exterior LED Taillights and Marker Lights
